High Stability Optical Mirror Mounts: Ensuring Precise Control for Aesthetics Devices

With the increase of residents' income and the continuous improvement of aesthetic requirements, the laser aesthetic equipment industry is experiencing rapid growth. Laser technology, once considered to be the future of aesthetic technology, has now integrated into our daily lives. Whether treating skin issues or recovering skin, laser devices play a crucial role due to their unique advantages. Optical mirror mounts, as integral components of laser devices, offer high stability, precision, and are easy to operate. They ensure accurate transmission and focusing of laser beams, guaranteeing treatment efficacy and safety in a wide range of laser aesthetic instruments.

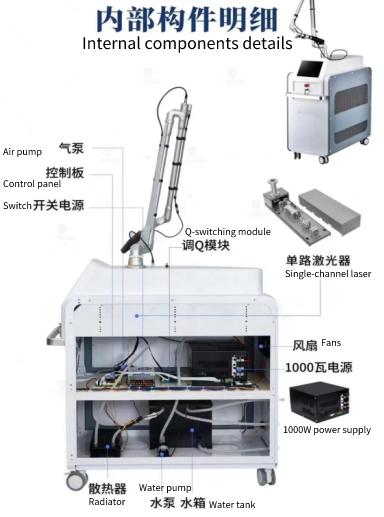

Q-switched laser aesthetic equipment is the most highly recognized products in the market. It significantly enhances freckle removal, scar removal, and skin improvement, delivering visible results while ensuring minimal skin damage and promoting skin regeneration without hurting hair follicles.

How Q-switched technology works

Upon initiation of excitation, deliberately reducing the Q-factor of the resonator cavity prevents laser oscillation. This allows for continuous accumulation of population inversion within the active medium. At a precise moment, rapidly increasing the resonator cavity's Q-factor triggers rapid laser oscillation inside the cavity. This rapid release of accumulated inverted particle energy results in laser output with narrow pulse widths and high peak power.

As light paths evolve from single-channel to increasingly complex dual-channel configurations, there is a growing demand for higher precision and more stable mirror mounts.

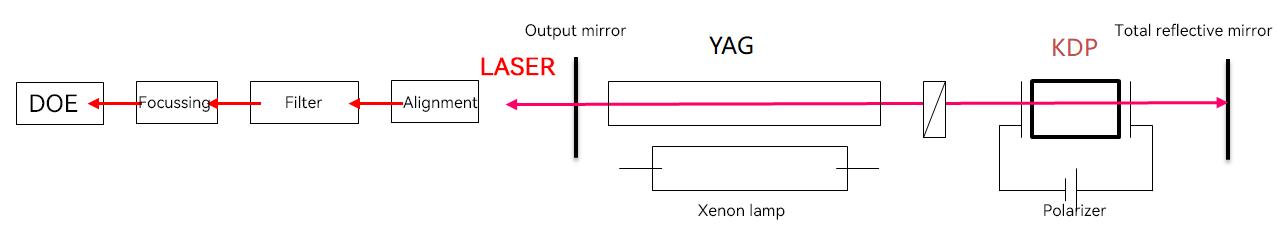

Electro-optic Q-switch laser device light path

Zolix provides a comprehensive range of mirror mounts, specifically designed as ideal solutions for space-constrained applications requiring high stability adjustments. To maintain quality consistency, we have established a complete quality management system that encompasses every mirror mounts from raw material evaluation to final product verification.

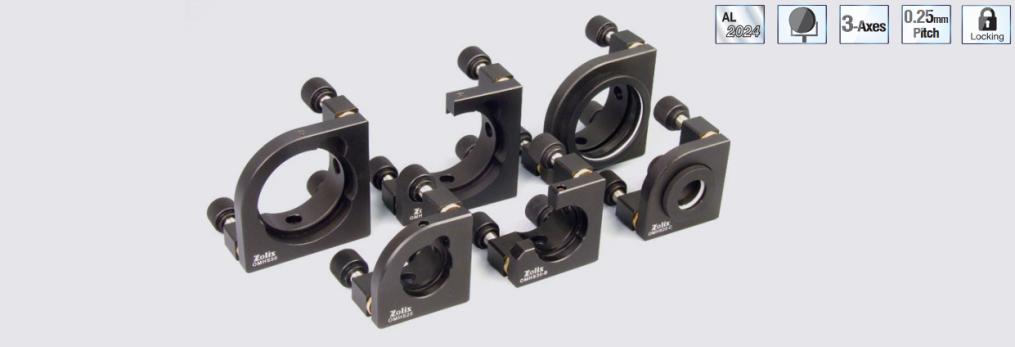

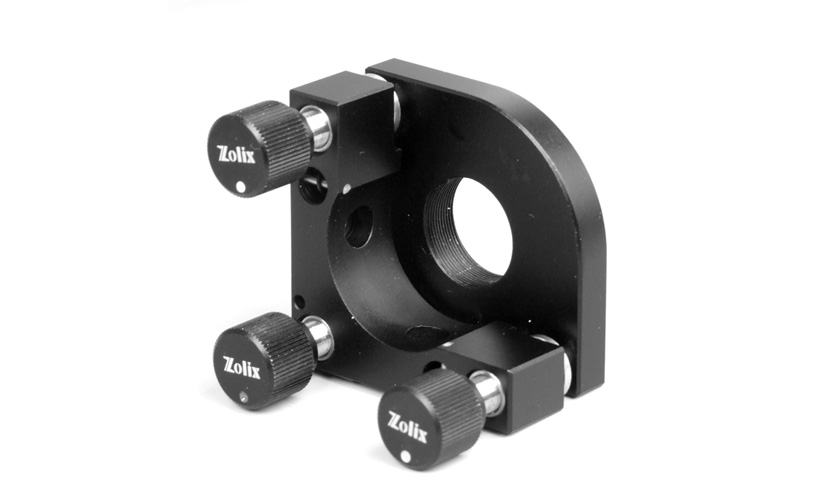

OMHS series of 3D alumimum alloy mirror mounts

This mirror mounts accommodate a wide range of optics with diameters spanning from Ø12.7 mm to Ø50.8 mm. Two fixation methods are available: top set screw mounting and retaining ring clamping. The side opening design (-B type) also accommodates a wider beam path.

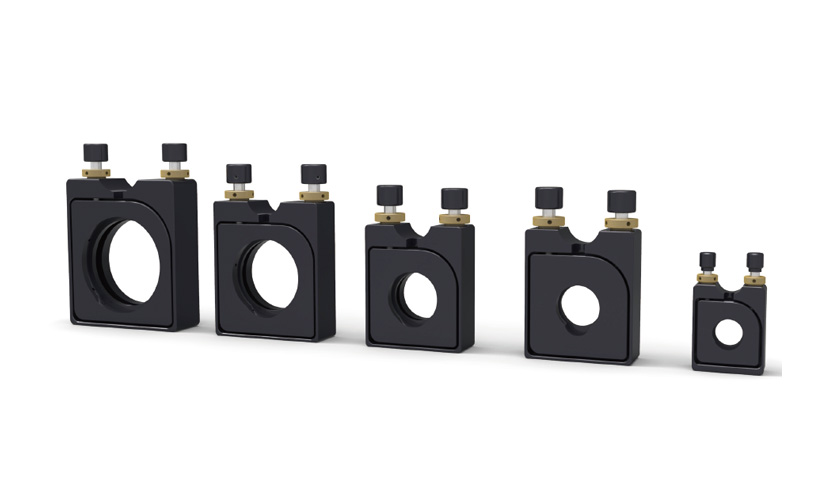

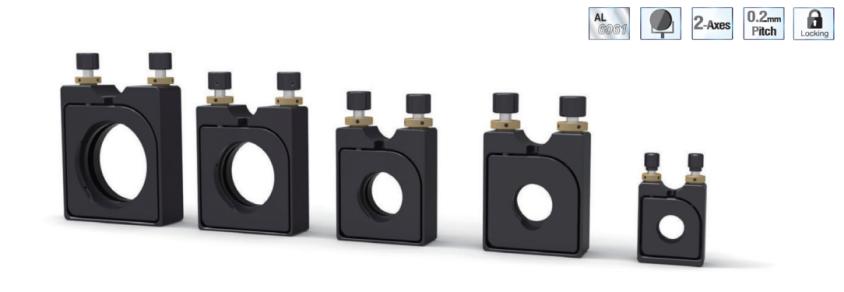

NMV series vertical drive kinematic mirror mount

The compact design integrates the adjustment wheel into the top position, significantly reducing the overall thickness of the mirror mount while optimizing spatial efficiency and enhancing operational accessibility. This makes the NMV mirror mounts ideal for installation in equipment with limited spaces.

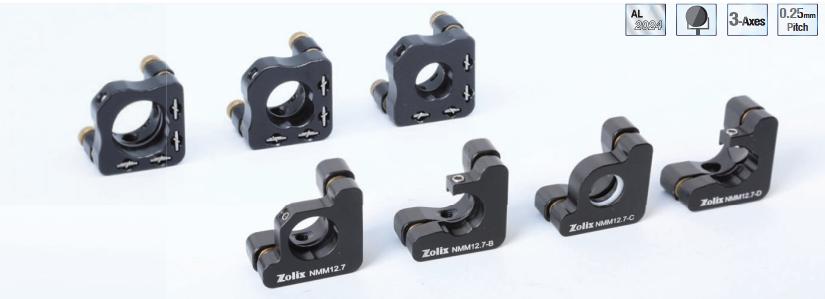

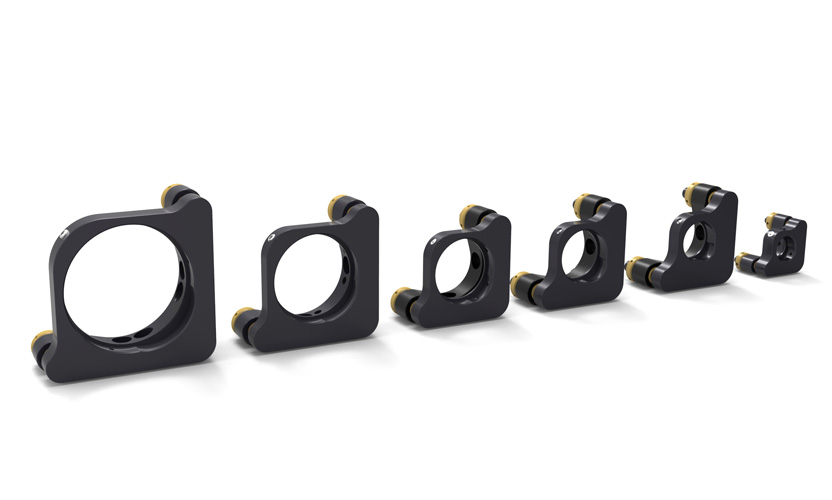

NMM series kinematic mirror mount

The NMM series mirror mounts are specifically designed to mount small size optics, with optimal compatibility from Ø8mm to Ø12.7mm diameter optics.

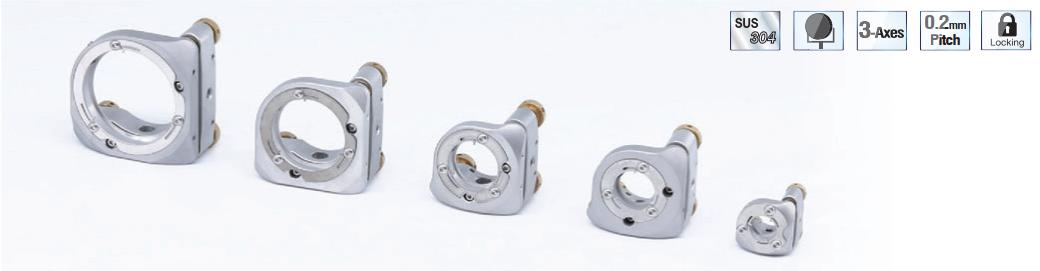

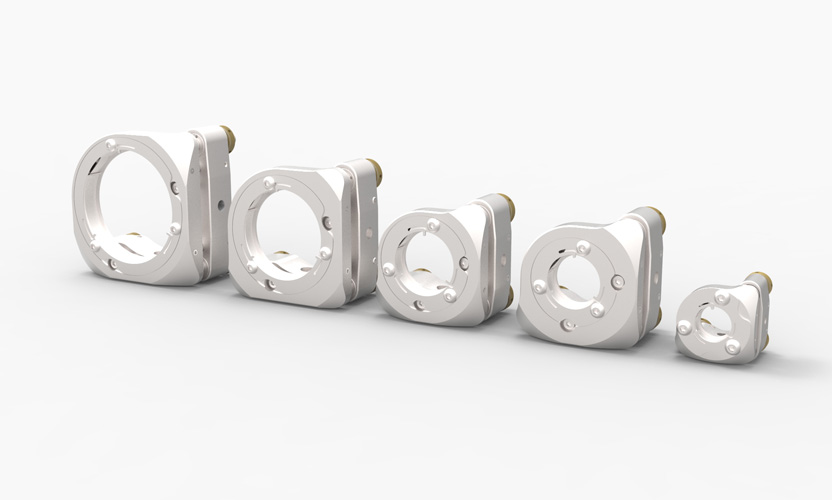

Stainless steel mirror mounts: SUS series kinematic mirror mounts

The SUS series mirror mounts are made of premium SUS304 stainless steel, offering exceptional structural stability and making them ideally suited for high power laser cavities, and vacuum environment.

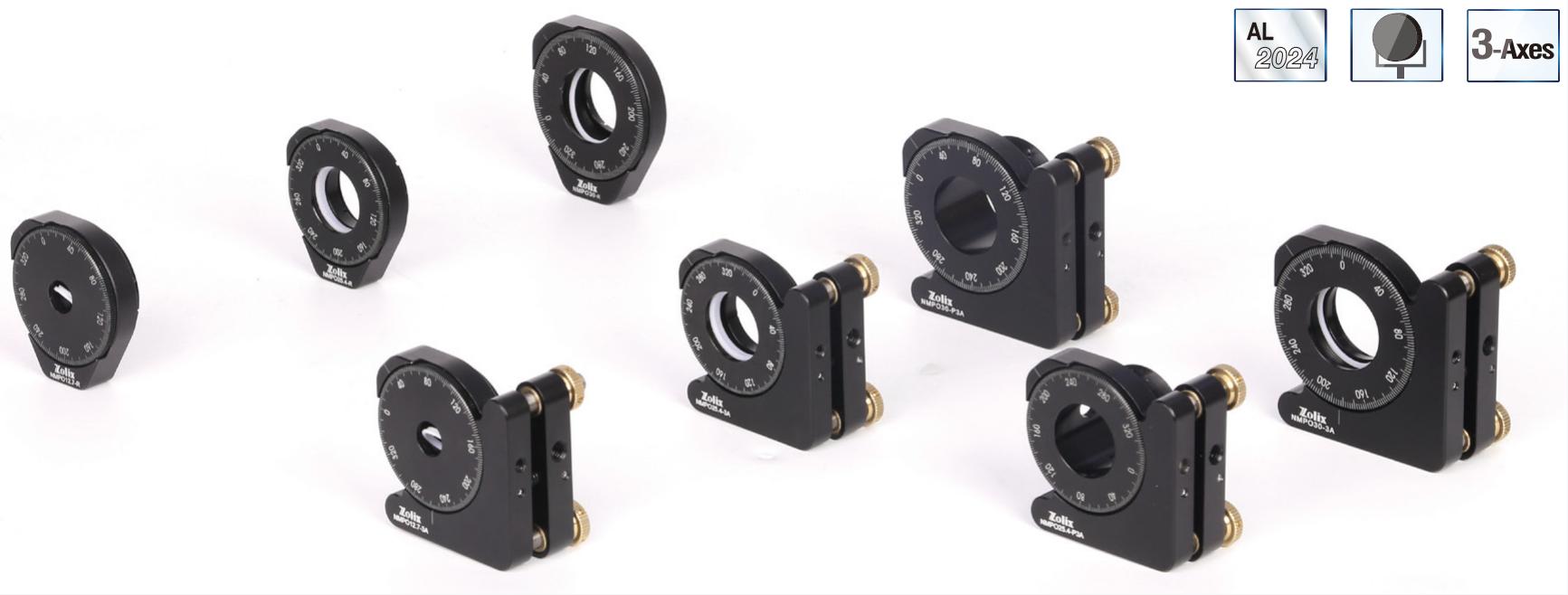

Polarizer mirror mounts：NMPO series kinematic mount

This precision mirror mounts provide precise adjustment capabilities for polarization optics, accommodating a wide range of optics with diameters from Ø12.7 to Ø30 mm. It not only has 360°rotation adjustment in Z axis, but also features ±3° precision tip/tilt adjustment in both X and Y axes.
