OMHS series Special Kinematic Mount
OMHS series Special Kinematic Mount

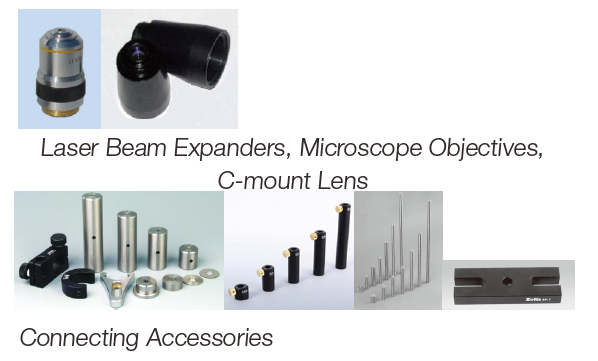

OMHS Series Special Kinematic Mounts are based on the OMHS structure, it is specifically designed for mounting with a laser beam expander, microscope objective, and C-mount lens.
Features:
See All FeaturesShow Filters:
Features:
• High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
• Advanced structure：
① Fine thread mechanism, high sensitivity and stability
② Dual pulling springs ,more uniform and more stable
• High sensitivity:3pcs 0.25mm fine thread makes the 3D adjustment pricise.
• Universal mounting : M4 (from top) M6 (at the bottom) mounting thread
Related Products:
Selection Table:
| Model | OMHS-LBE22 | OMHS-WJ | OMHS-Cmount |
| Number of Tuning Axis | 3 | ||
| Interface size A | M22×0.75 | 4/5″-1/36 | 1″-1/32 |
| Tilt Adjust Range( ° ) | ±3 | ||
| Tip Adjust Range( ° ) | ±3 | ||
| Translation Range (mm) | MAX6 | ||
| Tilt Resolution: angular adjustment per revolution( ° ) |
≈0.39 | ||
| Tip Resolution: angular adjustment per revolution( ° ) |
≈0.39 | ||
| Main Body Material and Treatment | Black anodized aluminium alloy | ||
| Optic Center Height (mm) | 25.0 | ||
| Fixed Plate Thickness(mm) | 18 | ||
| Number of Pulling Spring | 2.00 | ||
| Mounting Hole | M6, counter boreØ8 | ||
| Net Weightl(g) | 135 | 140 | 135 |
