NMM Series Kinematic Mirror Mount
.jpg)
.jpg)
.jpg)

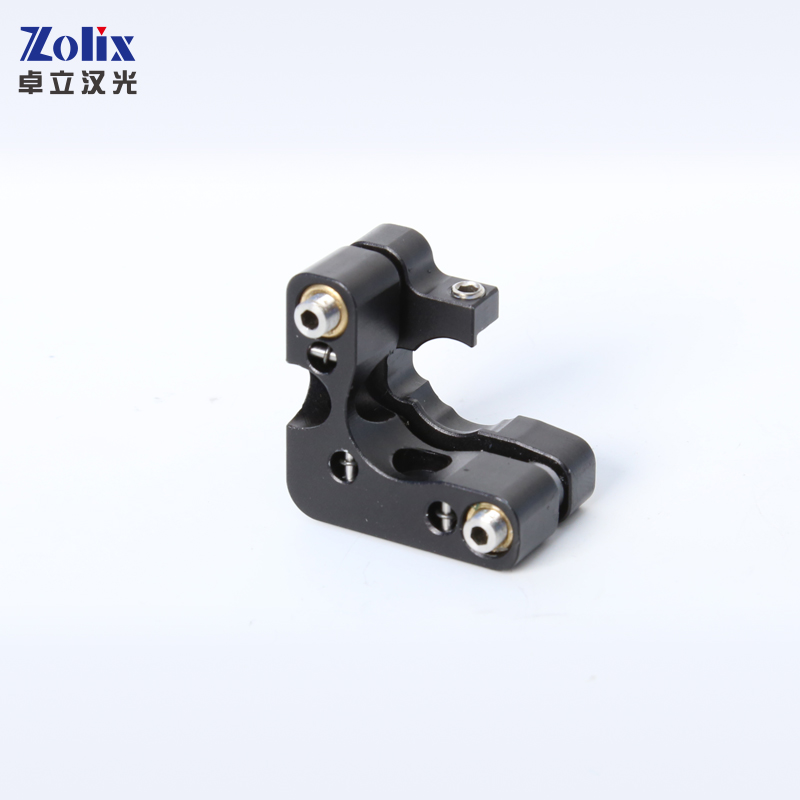

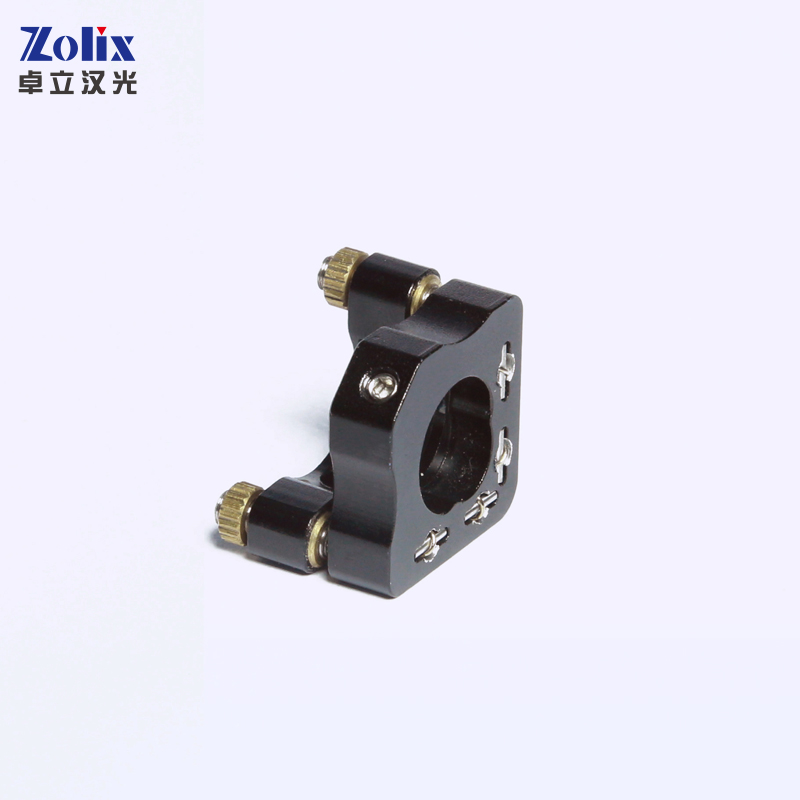

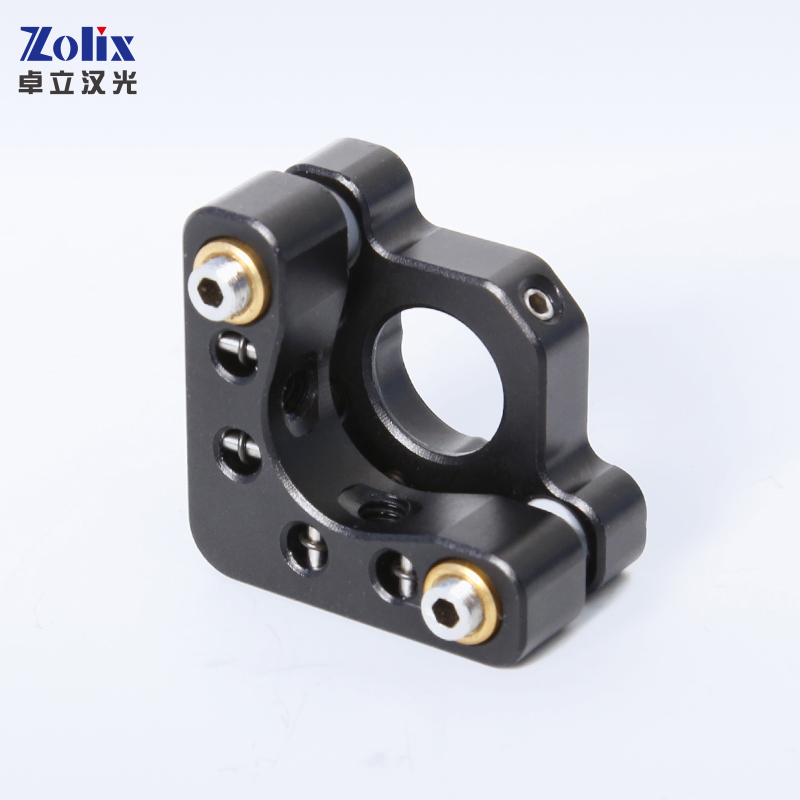

NMM Series Kinematic Mirror Mount
NMM series kinematic mounts is specially designed for small size optics, which features 28.5mm and 22mm profile dimensions. It’s a good option for the optics adjustment within very compact space.
Features:
High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
High sensitivity: Come with 0.25 mm pitch super-fine thread pairs for 2D adjustment, for higher sensitivity.
Easy adjustment: Adjusting thread pair come with inner-hexagonal adjusting hole behind.
Show Filters:
Description:
NMM series kinematic mounts is specially designed for small size optics, which features 28.5mm and 22mm profile dimensions. It’s a good option for the optics adjustment within very compact space.
Features:
- High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.Advanced compact structure:
①The design of four-pull spring enhances the puling force and makes the distribution of the pulling force more uniform.
②Come with 28.5mm small series and 20mm ultra small series, suit for the optics adjustment within very compact space.
- High sensitivity: Come with 0.25 mm pitch super-fine thread pairs for 2D adjustment, for higher sensitivity
- Easy adjustment: Adjusting thread pair come with inner-hexagonal adjusting hole behind. Can coupled with standard thumb wheel or Inner hexagon spanner, for better adjustment sensitivity and also larger angle range.
| Model | NMM12.7 | NMM12.7-B | NMM12.7-C | NMM12.7-D | NMM8m | NMM10m | NMM12.7m |
| Optic Size (mm) | φ12.5/φ12.7 | φ12.5/φ12.7 | φ12.5/φ12.7 | φ12.5/φ12.7 | φ8 | φ10 | φ12.5/φ12.7 |
| Optic Edge Thickness (mm) | 3~5 | 3~5 | 3~5 | 3~5 | 2~4 | 2~4 | 2~4 |
| Angular Range(。) | 士3 | 士3 | 士3 | 士3 | ±3 | ±3 | ±3 |
| Clear Aperture(mm) | φ11 | φ11 | φ11 | φ7/φ11 | φ7 | φ7 | φ11.7 |
| Optical Axis Height(mm) | 14 | 14 | 14 | 14 | 10 | 10 | 10 |
| Resolution: angular adjustment per revolution(°) | ≈0.75 | ≈0.75 | ≈0.75 | ≈0.75 | ≈0.975 | ≈0.975 | ≈0.975 |
| Main Body Material and Surface Treatment | Black anodized aluminium alloy | Black anodized aluminium alloy | Black anodized aluminium alloy | Black anodized aluminium alloy | Black anodized aluminium alloy | Black anodized aluminium alloy | Black anodized aluminium alloy |
| Thickness of The Fixed Plate(mm) | 8 | 8 | 8 | 9 | 6 | 6 | 6 |
| Number of Pulling Spring | 4 | 4 | 4 | 3 | 4 | 4 | 4 |
| Mounting Hole | M4 | M4 | M4 | M4,φ6 counter bore | M4 | M4 | M4 |
| Net Weight(g) | 20 | 20 | 20 | 20 | 10 | 10 | 10 |
