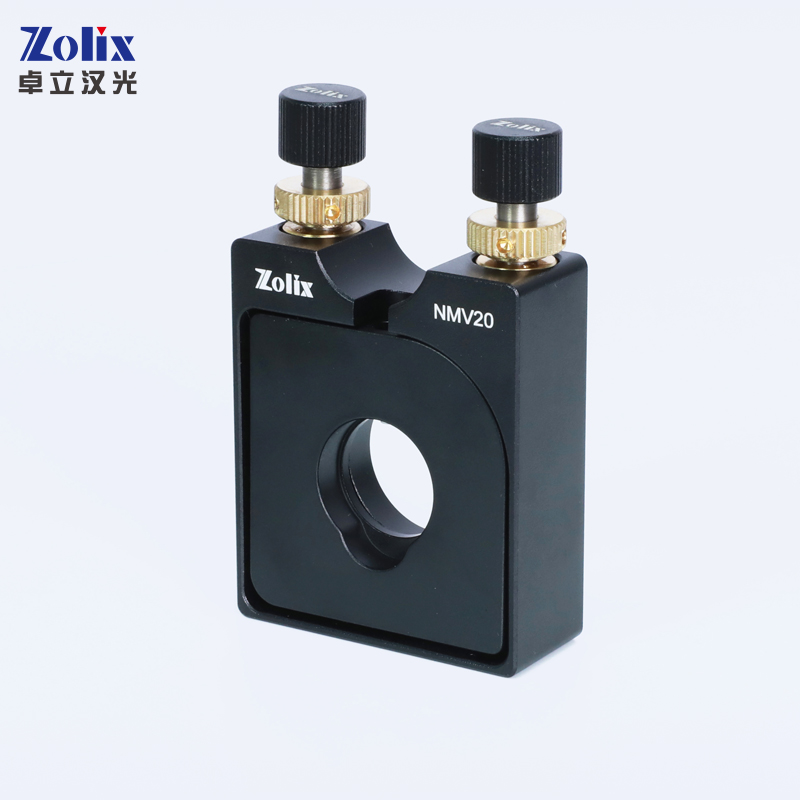

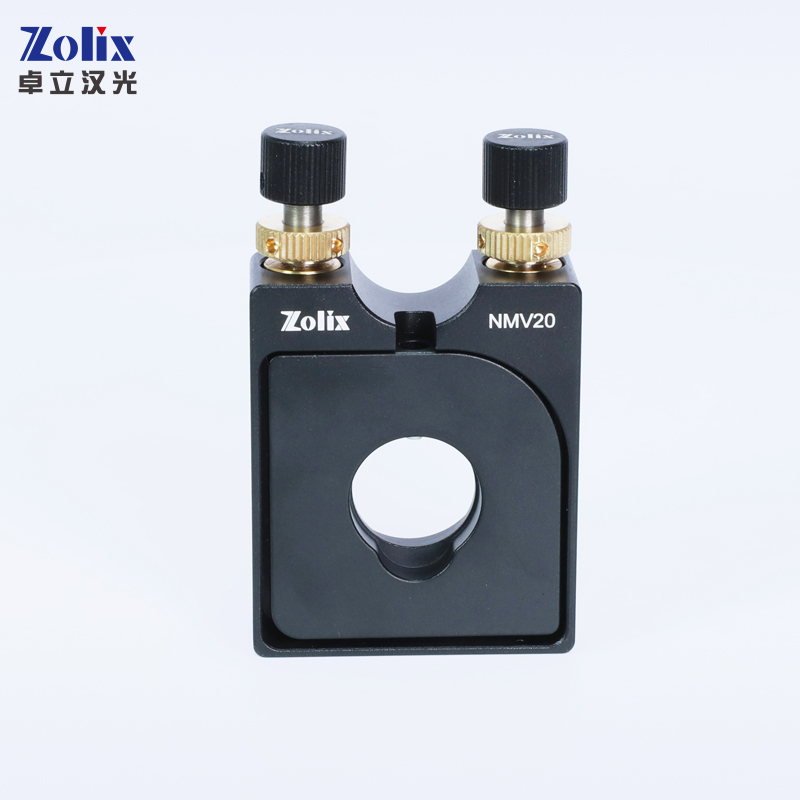

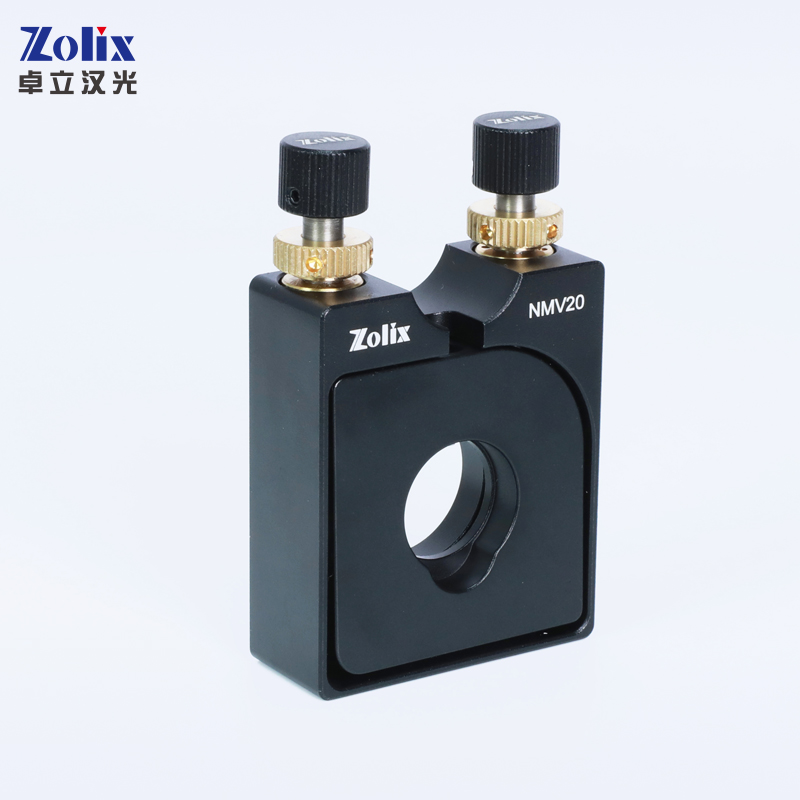

NMV series Vertical Drive Kinematic Mirror Mount
NMV series new designed kinematic mirror mounts feature adjustment thumb wheel on the top, so the thickness of kinematic mount is much smaller than regular type.
Features:
Show Filters:
Desciption:
NMV series new designed kinematic mirror mounts feature adjustment thumb wheel on the top, so the thickness of kinematic mount is much smaller than regular type.This design also avoids the problem of fnger blocking the optical path while tuning. Optic size covers from 12.7mm to 50.8mm, suitable for adjustments in limited space.

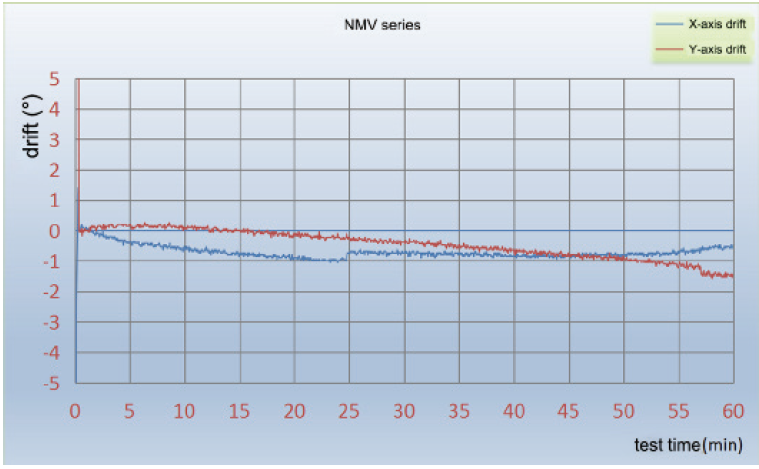

Features:
|
Model |
NMV12.7 |
NMV20 |
NMV25.4 |
NMV38.1 |
NMV50.8 |
|
Optic Size (mm) |
φ12.5/φ12.7 |
φ20 |
φ25/φ25.4 |
φ38.1 |
φ50/φ50.8 |
|
Optics Thickness (mm) |
2~5 |
3~6 |
|||
|
Adjustment Angle Range (°) |
±3 |
||||
|
Clear Aperture (mm) |
φ11.5 |
φ19 |
φ23.5 |
φ36.5 |
φ47 |
|
Optic Center Height (mm) |
17 |
25 |
25 |
32 |
35 |
|
Thickness(mm) |
13 |
20 |
20 |
20 |
22 |
|
One Round of Screw Drive vs Angle Adjusted (°)
|
Pitch：≈0.55 Yaw：≈0.57
|
Pitch：≈0.35 Yaw：≈0.34
|
Pitch：≈0.35 Yaw：≈0.34
|
Pitch：0.31 Yaw：≈0.26
|
Pitch：≈0.28 Yaw：≈0.22
|
|
Main Body Material and Treatment |
Aluminum alloy, black anodized |
||||
|
Number of Pulling Spring |
3 |
||||
|
Mounting Hole |
M4 |
M6，2个M4 |
|||
|
Weight(g) |
40 |
160 |
150 |
180 |
220 |
| Model | NMV12.7 | NMV20 | NMV25.4 | NMV38.1 | NMV50.8 |
| Optic Size(mm) | φ12.5/φ12.7 | φ20 | φ25/φ25.4 | φ38.1 | φ50/φ50.8 |
| Optic Edge Thickness(mm) | 2~5 | 3~6 | 3~6 | 3~6 | 3~6 |
| Angular Range(°) | ±3 | ±3 | ±3 | ±3 | ±3 |
| Clear Aperture(mm) | φ11.5 | φ19 | φ23.5 | φ36.5 | φ47 |
| Optical Axis Height(mm) | 17 | 25 | 25 | 32 | 35 |
| Overall Thickness (mm) | 13 | 20 | 20 | 20 | 22 |
| Resolution: angular adjustment per revolution(°) |
Pitch: ≈0.55 Yaw: ≈0.57 |
Pitch: ≈0.35 Yaw: ≈0.34 |
Pitch: ≈0.35 Yaw: ≈0.34 |
Pitch: 0.31 Yaw: 0.26 |
Pitch: ≈0.28 Yaw: ≈0.22 |
| Main Body Material and Surface Treatment |
Black Anodized Aluminium Alloy | Black Anodized Aluminium Alloy | Black Anodized Aluminium Alloy | Black Anodized Aluminium Alloy | Black Anodized Aluminium Alloy |
| Number of Pulling Spring | 3 | 3 | 3 | 3 | 3 |
| Locking Mechanics | Yes | Yes | Yes | Yes | Yes |
| Mounting Hole | M4 | M6 , 2*M4 | M6 , 2*M4 | M6 , 2*M4 | M6 , 2*M4 |
| Net Weight(g) | 40 | 160 | 150 | 180 | 220 |
