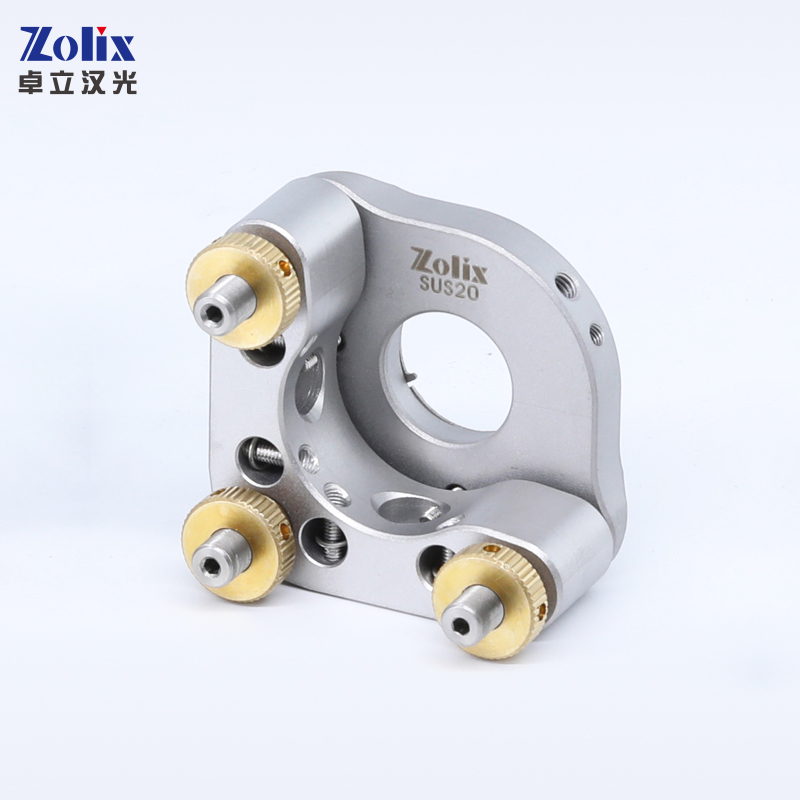

SUS series Stainless Steel Kinematic Mirror Mount

SUS series mirror mount is designed by Zolix for cases requiring high stability for a long term, which is available in sizes for optics ranging from Ø0.5" to Ø2".




Features:

High-Quality Materials: Adopting SUS304 stainless steel effectively reduces the thermal expansion coefficient and internal stress;
High stability: Adopting a superior line-line-line structure to replace the traditional point-line-surface structure, this mount offers significantly higher adjustment accuracy;
See All Features
- +
Cart Contact Us

Show Filters:

Description:

SUS series mirror mount is the ultimate solution designed by Zolix for cases requiring high stability for a long term, which is available in sizes for optics ranging from Ø1/2” to Ø2”. By incorporating piezo screws, this mount achieves automation and precise nanoscale motion.

Features:

• High-quality materials: Main body is made of heat treated No.304 stainless steel , which effectively reduces the thermal expansion coefficient and internal stress, and improves the
stability . Suit for vacuum and high power laser cavity applications (Note: Special vacumm grease should used when vacuum is need).
• High stability:
① Different from the traditional point-line-surface structure, better line-line-line structure is used, which has higher adjustment accuracy.
② Increase the thickness of the fixed plate, for higher rigidity and stability.
③ The design of four-pull spring enhances the pulling force and makes the distribution of the pulling force more uniform.
④ Hard steel sheet is used on the top surface of the screw pair , which has smoother adjusting perfor- mance.
• High sensitivity: 3 pcs 0.2 mm pitch super-fine thread pairs for 3D adjustment, for higher sensitivity.

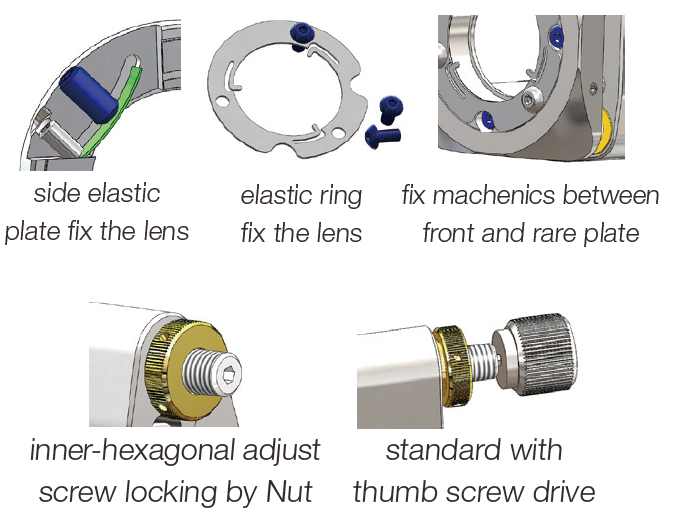

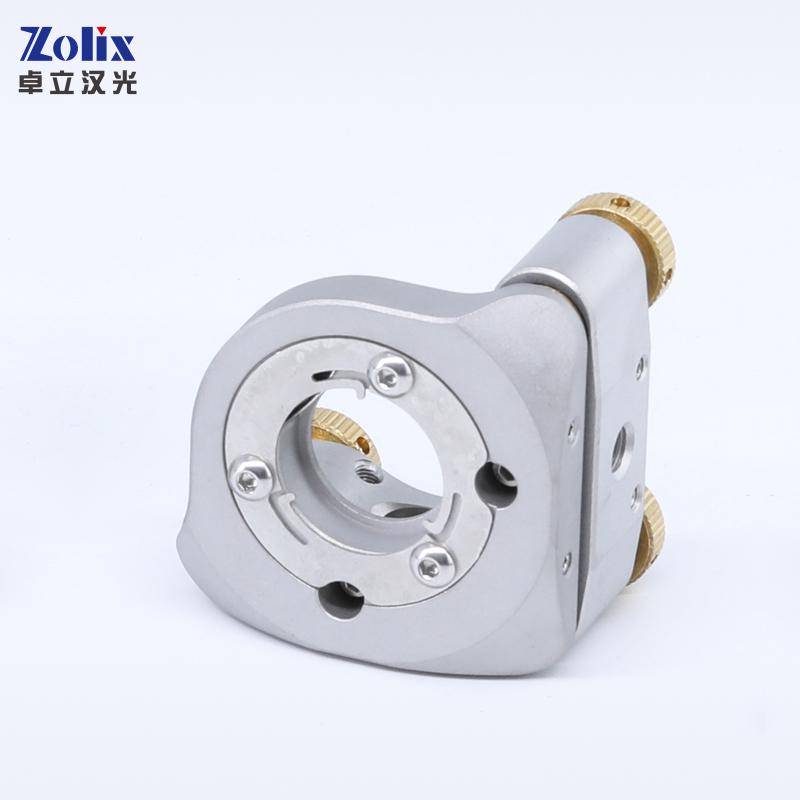

• Dual fixing method : One locking method is specially designed elastic ring , which can avoid the lens defor- mation by the locking screws or rigid fixing. Improve the stability of the optical path. Or you can take off the elastic ring, using the side elastic plate fix the lens.
• Dual locking method: In addition to the thread pair come with locking mechanism, the front and rear plates are designed with locking threaded holes.
• Dual adjustment method: Adjusting thread pair come with inner-hexagonal adjusting hole behind. Can coupled with standard thumb wheel or Inner hexagon spanner, for better adjustment sensitivity and also larger angle range.
• Universal mounting holes: M4, M6 screw holes.

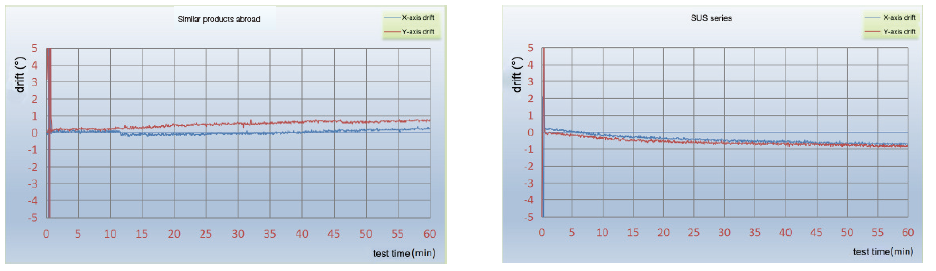

Compared with the stability curves of similar products abroad


Selection Table

Model

SUS12.7

SUS20

SUS25.4

SUS38.1

SUS50.8

Optic Size (mm)

φ12.5/ φ12.7

φ20

φ25/ φ25.4

φ38.1

φ50/ φ50.8

Optics Thickness (mm)

3~5

3~6

3~6

3~6

4~8

Adjustment Angle Range (°)

±3

Front Plate Translation (mm)

MAX6

Clear Aperture (mm)

φ11.5

φ18.5

φ24

φ36.5

φ48.5

Optic Center Height (mm)

15

25

25

30

35

One Round of Screw Drive vs Angle Adjusted (°)

≈0.57

≈0.33

≈0.33

≈0.25

≈0.21

Main Body Material and Treatment

stainless steel with sandblasting passivation

Thickness of The Fixed Plate(mm)

12

16

Number of Pulling Spring

4

Locking Mechanics

Yes

Yes,Dual Locking Mothod

Mounting Hole

M4

M6,φ8sink hole

Net Weight(g)

75

240

230

290

360

Details display：







Model SUS12.7 SUS20 SUS25.4 SUS38.1 SUS50.8
Optic Size (mm) φ12.5/φ12.7 φ20 φ25/φ25.4 φ38.1 φ50/φ50.8
Optics Thickness (mm) 3~5 3~6 3~6 3~6 4~8
Adjustment Angle Range (°) ±3 ±3 ±3 ±3 ±3
Front Plate Translation (mm) MAX6 MAX6 MAX6 MAX6 MAX6
Clear Aperture (mm) φ11.5 φ18.5 φ24 φ36.5 φ48.5
Optic Center Height (mm) 15 25 25 30 35
Resolution: angular adjustmentper revolution(°） ≈0.57 ≈0.33 ≈0.33 ≈0.25 ≈0.21
Main Body Material and Treatment Stainless steel with sandblasting passivation Stainless steel with sandblasting passivation Stainless steel with sandblasting passivation Stainless steel with sandblasting passivation Stainless steel with sandblasting passivation
Thickness of The Fixed Plate(mm) 12 16 16 16 16
Number of Pulling Spring 4 4 4 4 4
Locking Mechanics Yes Yes, dual locking mechanisms M6, φ8 counter bore Yes, dual locking mechanisms M6, φ8 counter bore Yes, dual locking mechanisms M6, φ8 counter bore Yes, dual locking mechanisms M6, φ8 counter bore
Mounting Hole M4 M6,φ8 sink hole M6,φ8 sink hole M6,φ8 sink hole M6,φ8 sink hole
Net Weight(g) 75 240 230 290 360
