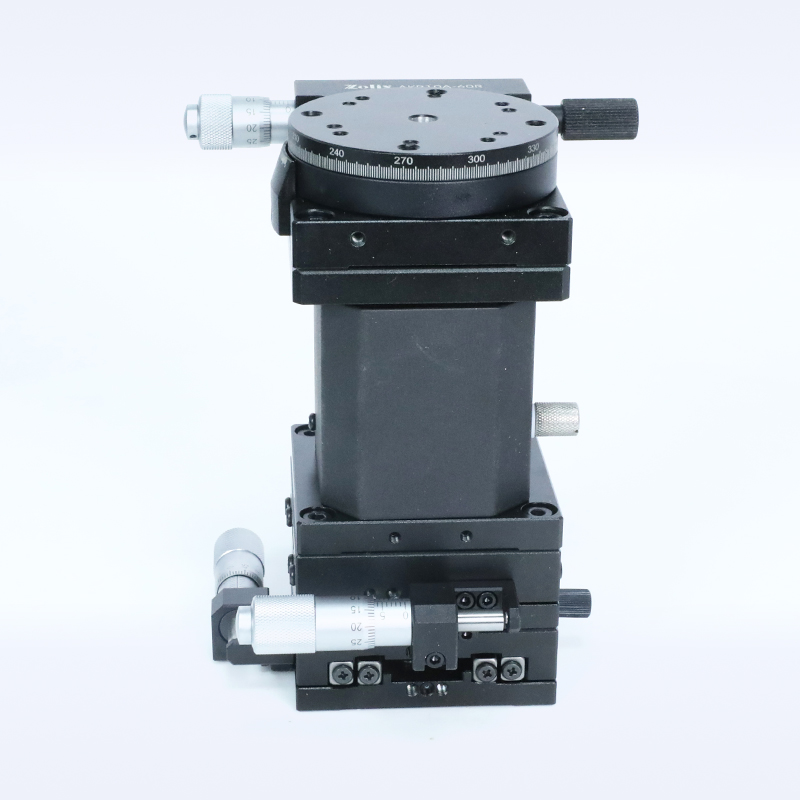

AAK4-60R
•Main body material is aluminum alloy, good corrosion resistance
•Compact structure, cost-effective
•Multiple Drive location, easy to adjust
MODEL: AAK4-60R
Specifications
Configurations X
AK13A-6020SR
Configurations Y
AK13A-6020SR
Configurations Z
AKV13A-60Z
Configurations θz
AKR10A-60R(Special models for
combined products)
Configurations θx
-
Configurations θy
-
Travel range X
±6.5mm(10µm/scale)
Travel range Y
±6.5mm(10µm/scale)
Travel range Z
±6.5mm(10µm/scale)
Travel range θz
Coarse：360°;Fine：10°(50.4”/scale)
Travel range Hx
-
Travel range θy
-
Weight(Kg)
1.35
Load capacity(Kg)
2.5
