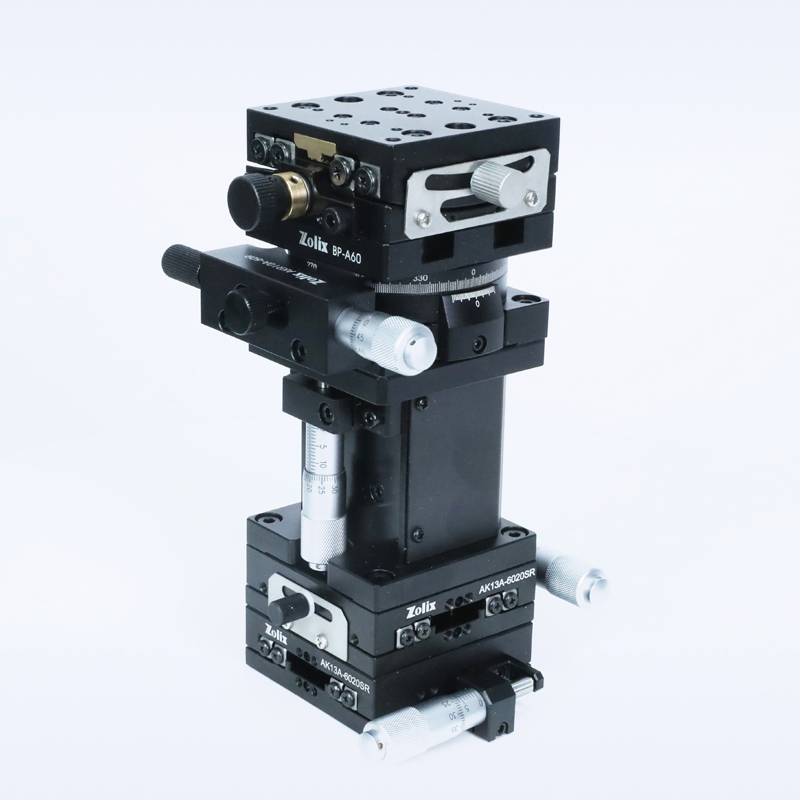

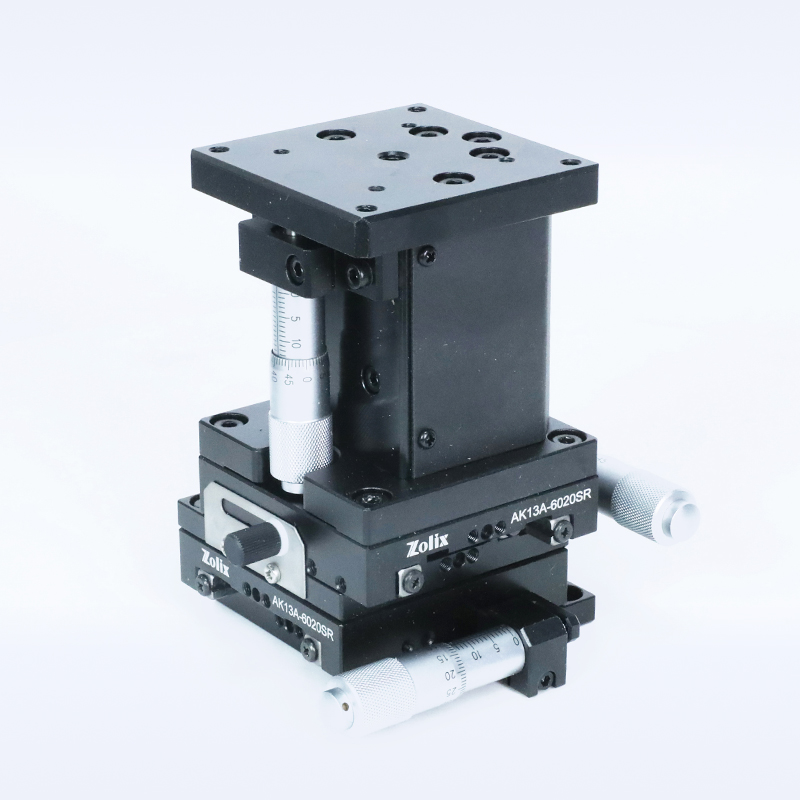

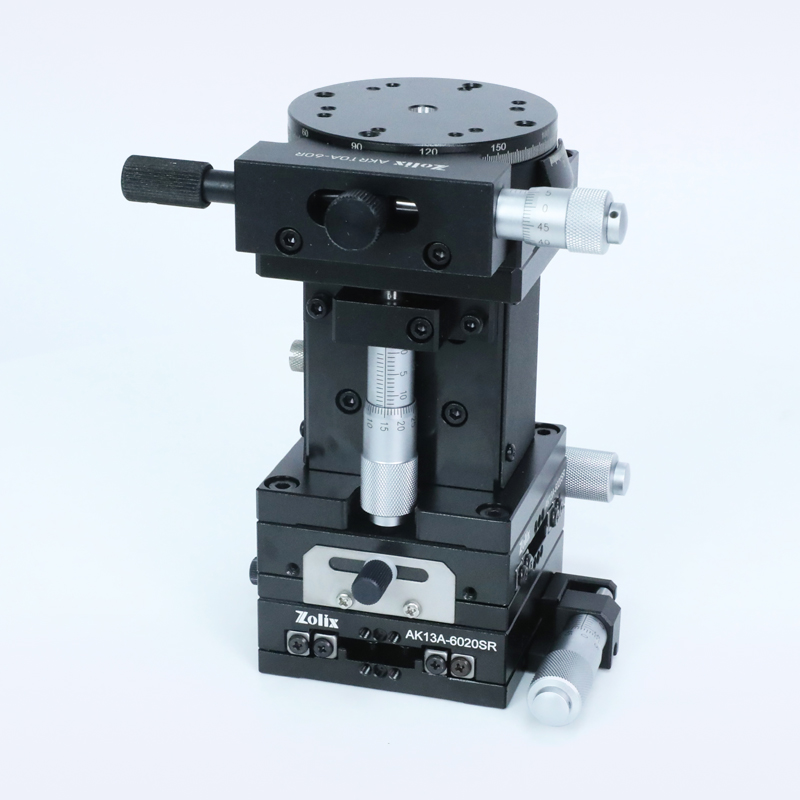

AAK Series Combined Manual Stages
.jpg)
.jpg)
.jpg)
.jpg)
AAK Series Combined Manual Stages
Features:
•Main body material is aluminum alloy, good corrosion resistance
•Compact structure, cost-effective
•Multiple Drive location, easy to adjust
Show Filters:

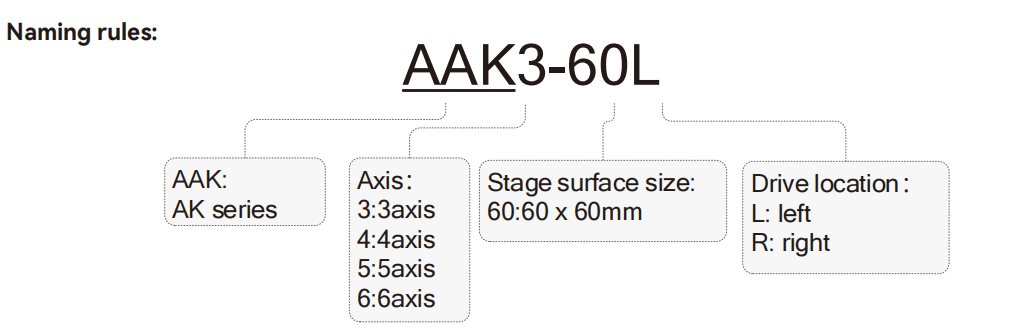

Naming Rules:

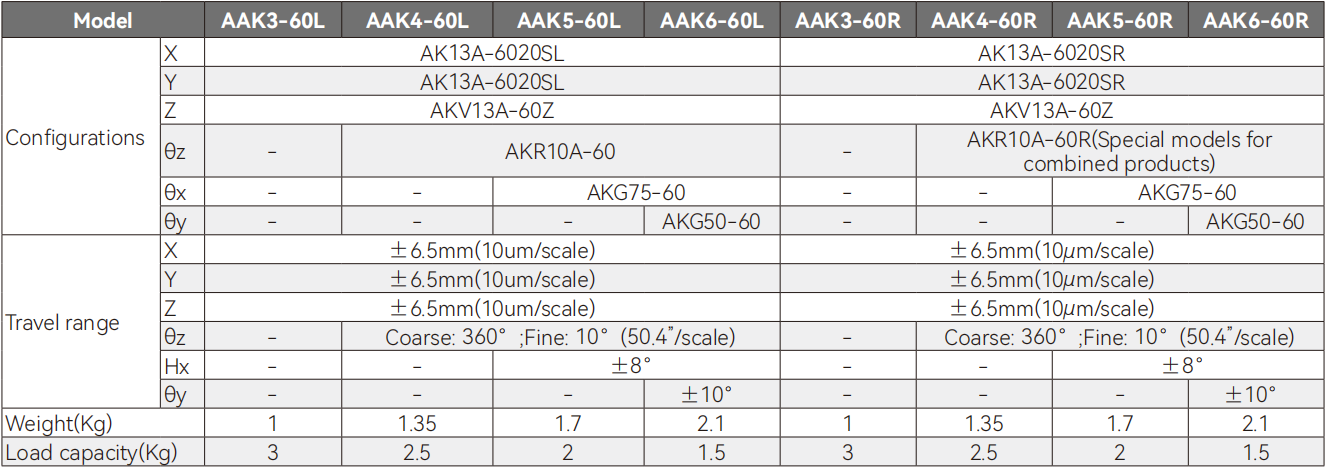

Selection Table:
| Model | AAK3-60L | AAK4-60L | AAK5-60L | AAK6-60L | AAK3-60R | AAK4-60R | AAK5-60R | AAK6-60R | |
| Configurations | X | AK13A-6020SL | AK13A-6020SL | AK13A-6020SL | AK13A-6020SL | AK13A-6020SR | AK13A-6020SR | AK13A-6020SR | AK13A-6020SR |
| Y | AK13A-6020SL | AK13A-6020SL | AK13A-6020SL | AK13A-6020SL | AK13A-6020SR | AK13A-6020SR | AK13A-6020SR | AK13A-6020SR | |
| Z | AKV13A-60Z | AKV13A-60Z | AKV13A-60Z | AKV13A-60Z | AKV13A-60Z | AKV13A-60Z | AKV13A-60Z | AKV13A-60Z | |
| θz | - | AKR10A-60 | AKR10A-60 | AKR10A-60 | - | AKR10A-60R(Special models for combined products) |
AKR10A-60R(Special models for combined products) |
AKR10A-60R(Special models for combined products) |
|
| θx | - | - | AKG75-60 | AKG75-60 | - | - | AKG75-60 | AKG75-60 | |
| θy | - | - | - | AKG50-60 | - | - | - | AKG50-60 | |
| Travel range | X | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) |
| Y | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | |
| Z | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10um/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | ±6.5mm(10µm/scale) | |
| θz | - | Coarse：360°;Fine：10°(50.4”/scale) | Coarse：360°;Fine：10°(50.4”/scale) | Coarse：360°;Fine：10°(50.4”/scale) | - | Coarse：360°;Fine：10°(50.4”/scale) | Coarse：360°;Fine：10°(50.4”/scale) | Coarse：360°;Fine：10°(50.4”/scale) | |
| Hx | - | - | ±8° | ±8° | - | - | ±8° | ±8° | |
| θy | - | - | - | ±10° | - | - | - | ±10° | |
| Weight(Kg) | 1 | 1.35 | 1.7 | 2.1 | 1 | 1.35 | 1.7 | 2.1 | |
| Load capacity(Kg) | 3 | 2.5 | 2 | 1.5 | 3 | 2.5 | 2 | 1.5 | |
