TSAxx-B Series Square Guide Motorized Linear Stage>
TSA200-B
TSA200-B

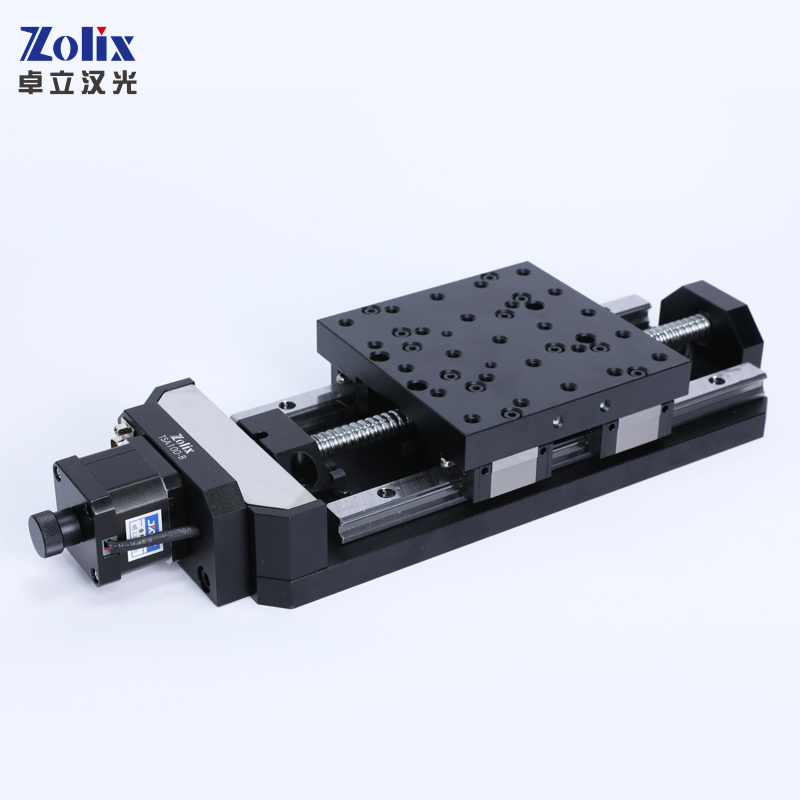

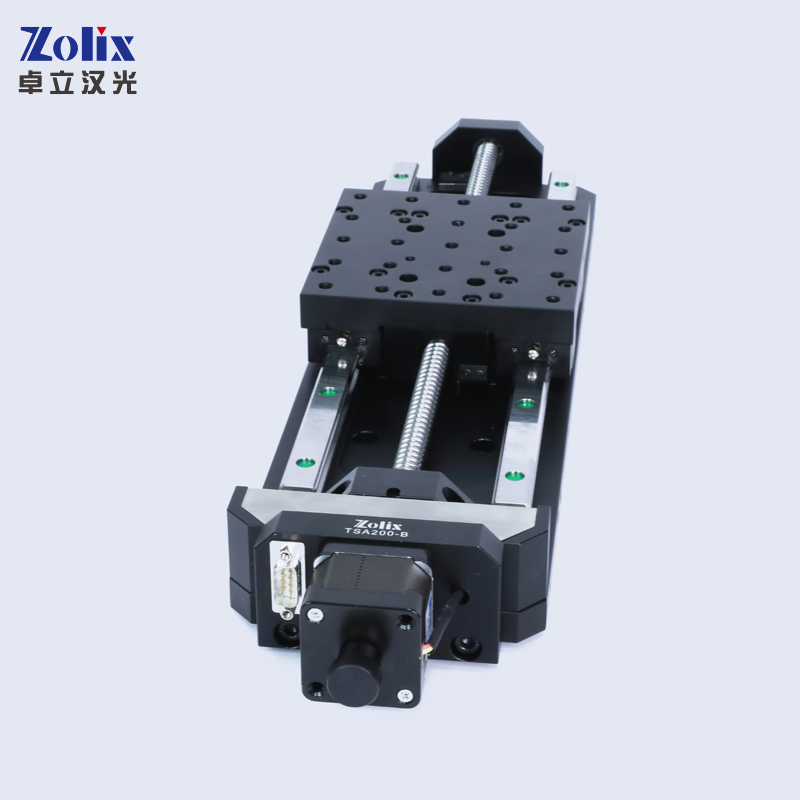

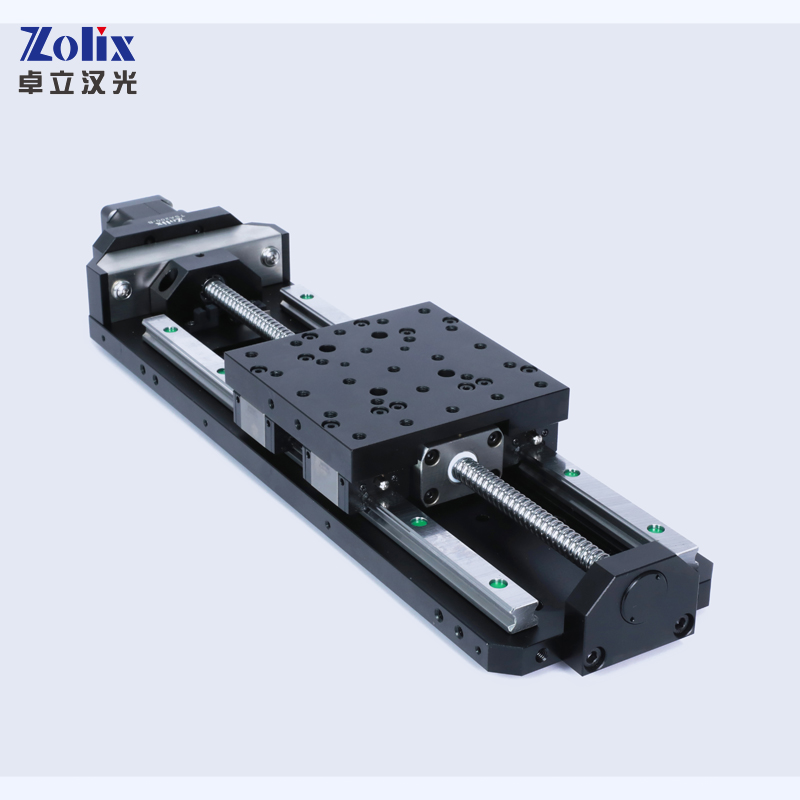

TSA-B series motorized linear stages employ linear slider guide, industrialgrade ball screw and high-quality shaft coupling unit contributes to high performance. A pair of mechanical position-limit switches(one at right end and the other at left end) and an origin-point sensor are all necessary parts to protect stages working well. It is easy for signal communications due to standard electrical and mechanical interfaces being used. Customers can operate the stages manually by using a hand wheel attached to the motor. This series of products offers standard installation holes which ensure the easy setup for multi-axis stages system. It also makes the combination with Zolix other products much easier. TSA-B series is most applicable of heavyloading and stable-running scenarios.
MODEL: TSA200-B
Specifications
Travel range(mm)
200
Stage surface size(mm)
120×120
Transmission mechanism
precision ball screw,Φ12×4
Guide mechanism
linear-slider guides
Main body material and surface
Black anodized aluminum alloy
Weight(Kg)
4.6
Resolution (step/half-step) (µm)
20/10
8-fine-subdivision resolution (µm)
2.5
Max speed(mm/s)*
40
Repositioning accuracy (µm)
≤±5
Backlash (µm)
≤7
Motor and its stepping angle (°)
Two phase 42 stepping motor，1.8
Working current(A)
1.7
Holding torque of motor (N·m)
0.42
Position-limit sensors (built-in)
2个KX-EE-SX672
Origin-point sensors (built-in)
1个PI-ITR8104
Horizontal direction(Kg)
30
Vertical direction(Kg)
3
Inverted direction(Kg)
5
Minimum Incremental Motion(um)
≤5
