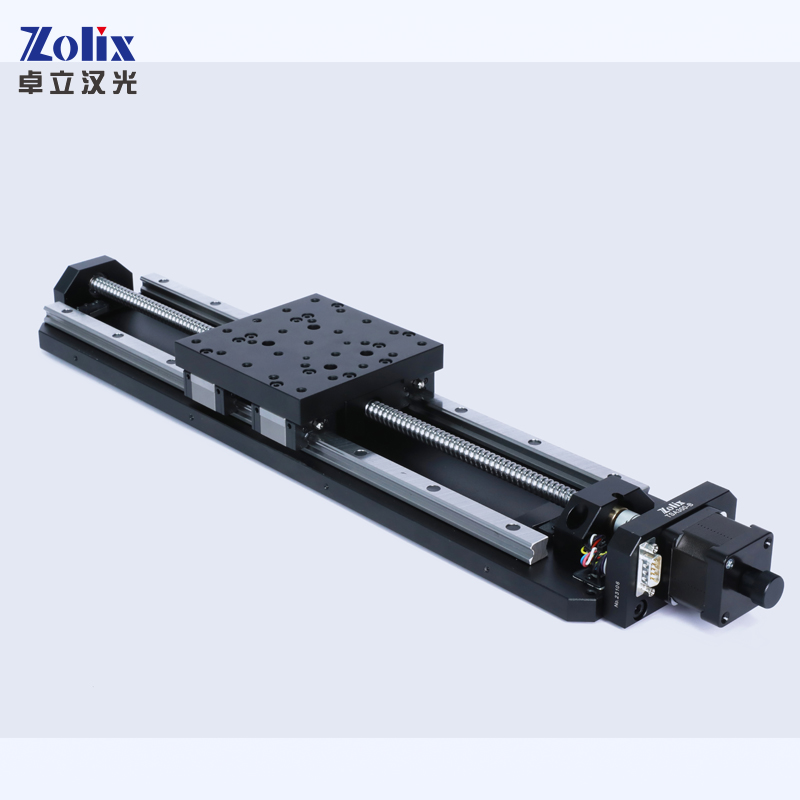

TSAxx-B Series Square Guide Motorized Linear Stage
TSA-B series motorized linear stages employ linear slider guide, industrialgrade ball screw and high-quality shaft coupling unit contributes to high performance.
Features:
Show Filters:
Main characteristics:
•Linear-slider guides provides heavy-load capabilities for different applications.

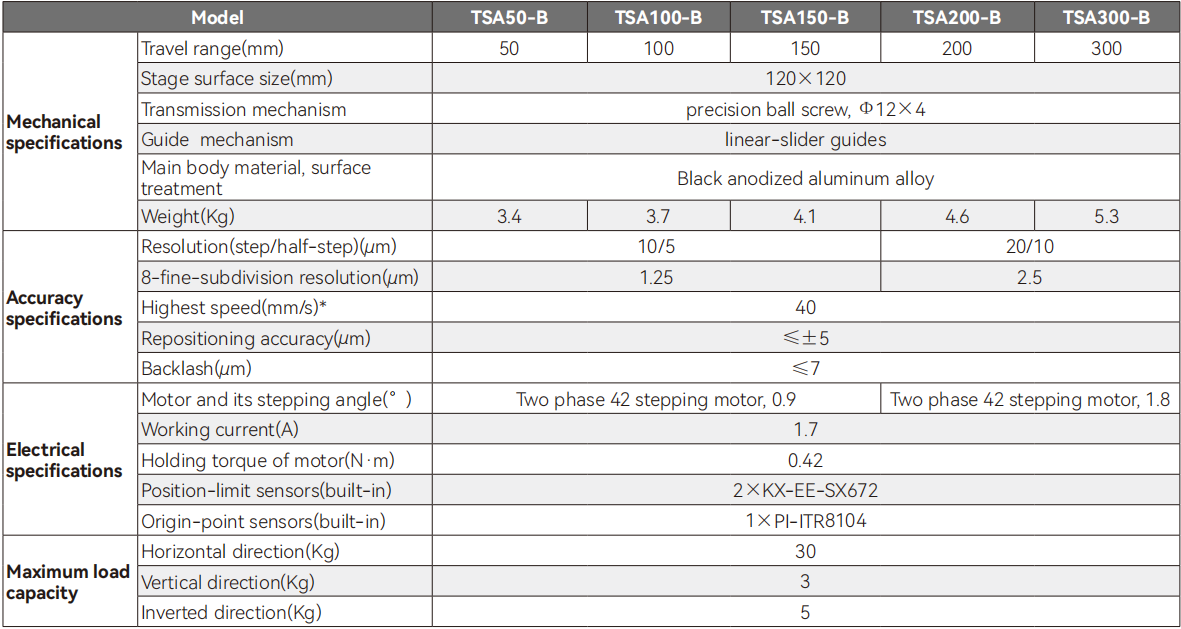

| Model | TSA50-B | TSA100-B | TSA150-B | TSA200-B | TSA300-B | |
| Mechanical specifications | Travel range(mm) | 50 | 100 | 150 | 200 | 300 |
| Stage surface size(mm) | 120×120 | 120×120 | 120×120 | 120×120 | 120×120 | |
| Transmission mechanism | precision ball screw,Φ12×4 | precision ball screw,Φ12×4 | precision ball screw,Φ12×4 | precision ball screw,Φ12×4 | precision ball screw,Φ12×4 | |
| Guide mechanism | linear-slider guides | linear-slider guides | linear-slider guides | linear-slider guides | linear-slider guides | |
| Main body material and surface | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | |
| Weight(Kg) | 3.4 | 3.7 | 4.1 | 4.6 | 5.3 | |
| Accuracy specifications | Resolution (step/half-step) (µm) | 10/5 | 10/5 | 10/5 | 20/10 | 20/10 |
| 8-fine-subdivision resolution (µm) | 1.25 | 1.25 | 1.25 | 2.5 | 2.5 | |
| Max speed(mm/s)* | 40 | 40 | 40 | 40 | 40 | |
| Repositioning accuracy (µm) | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 | |
| Backlash (µm) | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | |
| Electrical specifications | Motor and its stepping angle (°) | Two phase 42 stepping motor，0.9 | Two phase 42 stepping motor，0.9 | Two phase 42 stepping motor，0.9 | Two phase 42 stepping motor，1.8 | Two phase 42 stepping motor，1.8 |
| Working current(A) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | |
| Holding torque of motor (N·m) | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | |
| Position-limit sensors (built-in) | 2个KX-EE-SX672 | 2个KX-EE-SX672 | 2个KX-EE-SX672 | 2个KX-EE-SX672 | 2个KX-EE-SX672 | |
| Origin-point sensors (built-in) | 1个PI-ITR8104 | 1个PI-ITR8104 | 1个PI-ITR8104 | 1个PI-ITR8104 | 1个PI-ITR8104 | |
| Maximum load capacity | Horizontal direction(Kg) | 30 | 30 | 30 | 30 | 30 |
| Vertical direction(Kg) | 3 | 3 | 3 | 3 | 3 | |
| Inverted direction(Kg) | 5 | 5 | 5 | 5 | 5 | |
| *Note: Highest speed is measured with the conditions of zero-load and motors being worked at 600rpmno-load condition. | ||||||
