CXPF30-80
CXPF30-80

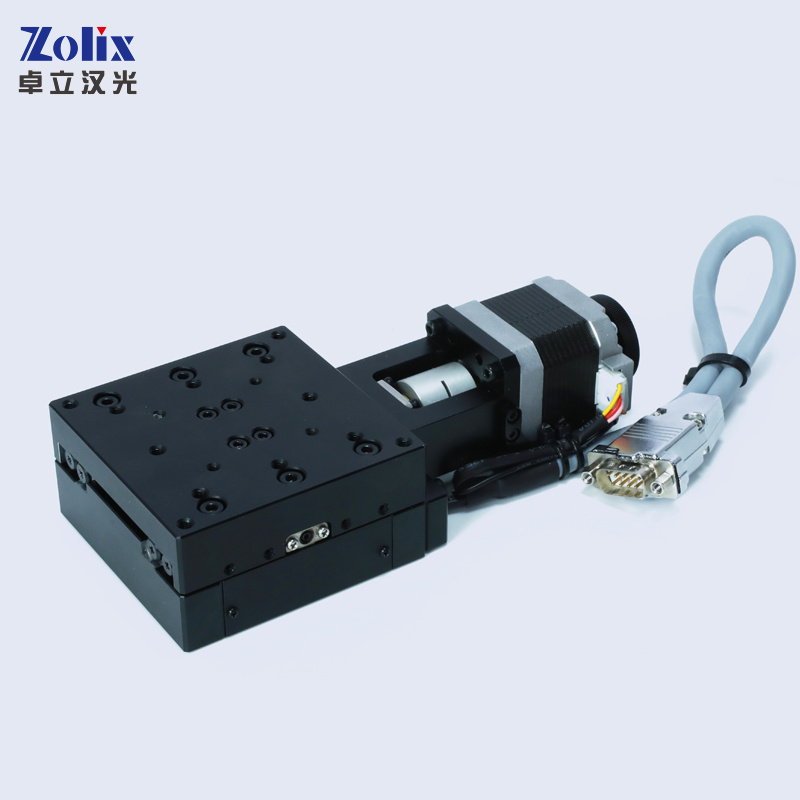

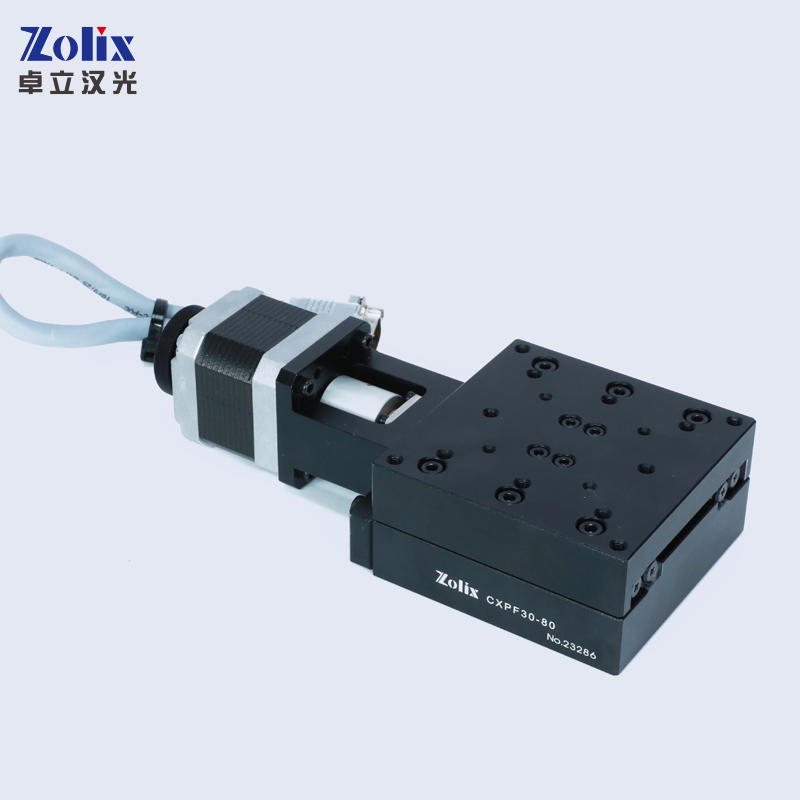

CXPF series is one of derivative version of CXP series, equipped with longer lead pitch (2mm) and a set crossed-roller guides to meet the requirements of faster moving, higher rigidity and longer travel range.
MODEL: CXPF30-80
Specifications
Travel range(mm)
30
Stage surface size(mm)
80×80
Guide mechanism
ball screw,φ8×2
Guide mechanism
crossed-roller bearing guides
Main body material and
surface treatments
Black anodized aluminum-alloy
Weight(Kg)
1.2
Shaft coupling (OD - OD1-
OD2)(mm)
16-5-5
Resolution (step/half-step)
(µm)
10/5
20-fine-subdivision
resolution (µm)
0.5
Max speed(mm/s)*
20
Repositioning accuracy
(µm)
≤±1.5
Backlash(um)
≤3
Static parallelism (mm)
≤0.08
Motion straightness(µm)
≤10
Motion parallelism (µm)
≤15
Minimum incremental motion (µm)**
≤5
Brand and model number
of motor
Shinano, STP-28D1003-08
Motor and its stepping
angle (°)
2 phase 42 stepping motor, 1.8
Insulation resistance
Above 100MΩ/Min
Insulating strength
"500V AC no abnormality within 1 minute"
Insulating level
UL B level
Weight(Kg)
0.29
Voltage(V)
2.8
Current
1.7A/phase
Resistance
1.65±10%Ω/phase
Inductance
3.6mH/phase
Holding torque
0.456N.m
Retarding torque
0.005N.m(reference value)
Inertia of the rotor
56g.cm
Operating temperature
0~+50℃
Max operating temperature
for motor
80℃ Max
Brand and model number of
stepping driver (optional)
Moons, SR2
Type of plug for stage
DB9(pin)
Type of cable for stage
High flexibility cable (Helukabel, Germany)
Length of cables for
stages(m)
0.2
Position-limit sensors
(built-in)
2*GP1S09xHCP(Japan SHARP)
Origin-point sensors (built-
in)
1*GP1S09xHCPI(Japan SHARP)
Voltage of power supply for
sensors (V)
DC5-24V±10%
current consumption
<60 (total)
Control output
NPN open collector output DC5～24V 8mA or
less Residual voltage 0.3V or less (when load current is 2mA)
Status of output ports
output ON when sensor is blocked
Horizontal direction(kg)
16
Vertical direction(kg)
5
Inverted direction(kg)
5
