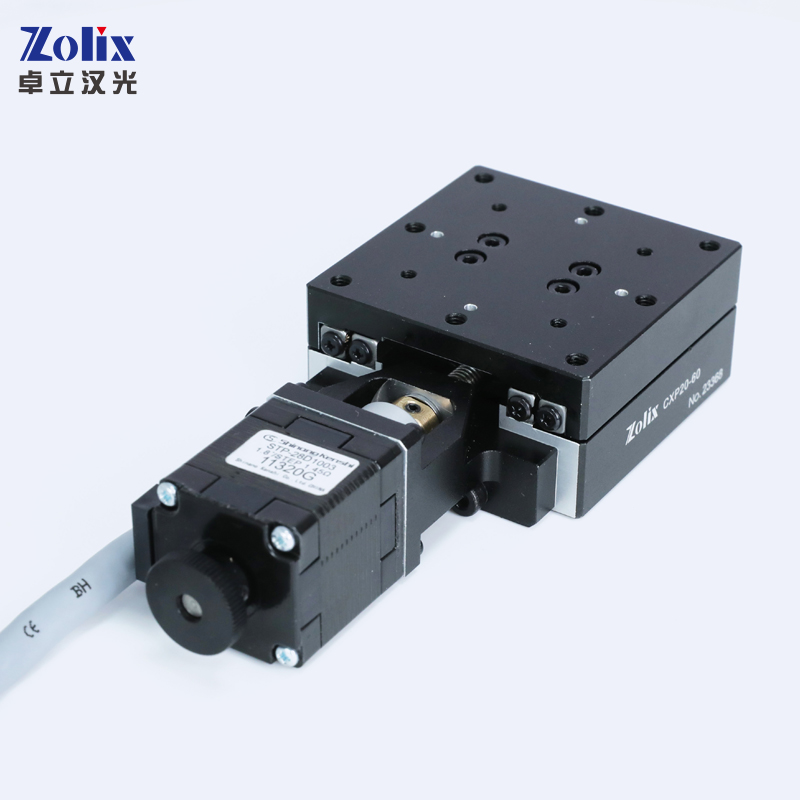

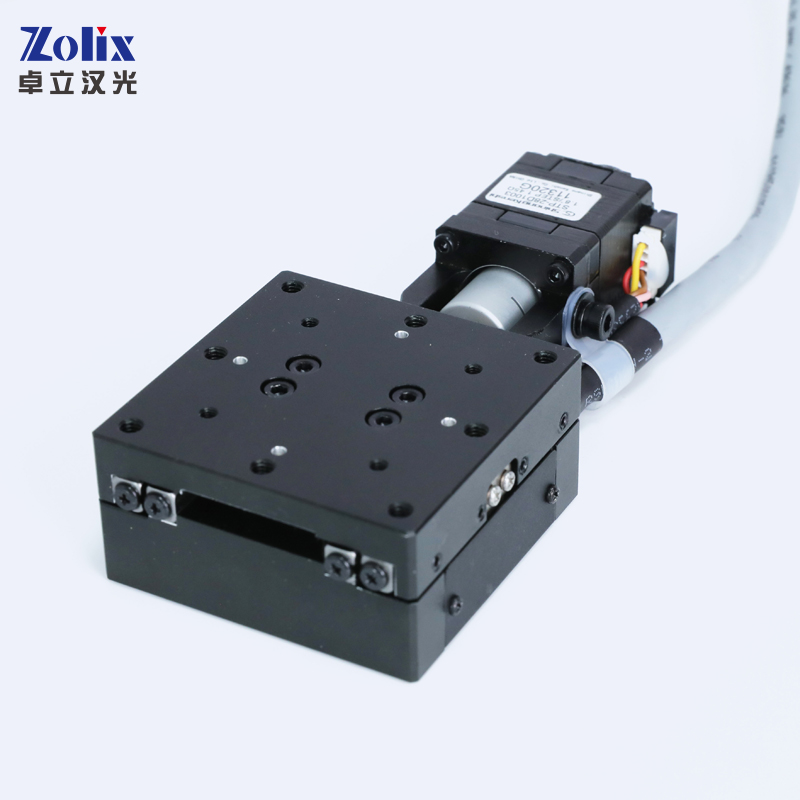

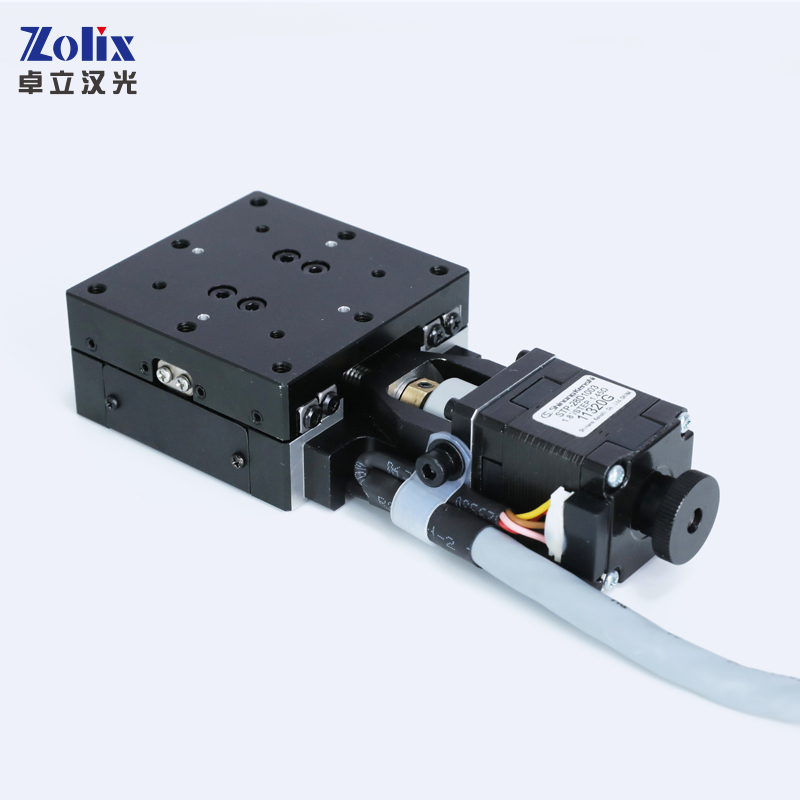

CXP20-60
CXP20-60
CXP series is special designed for the usage scenarios such as small-size and high frequency operation.The main body is made by hard aluminum alloy with black anodic-oxidation surface treatments which ensure the good wear resistance and nice appearance. A set of crossed-roller guide is employed which offers high motion precision even with heavy load. 1mm lead pitch and high precision two-phase stepping motor are the key parts to ensure minimum incremental motion size and high positioning accuracy. This model is a very idea option for automation equipment, precise instruments in which limited space must being considered. CXPF series is one of derivative version of CXP series, equipped with longer lead pitch (2mm) and a set crossed-roller guides to meet the requirements of faster moving, higher rigidity and longer travel range.
MODEL: CXP20-60
Specifications
Travel range(mm)
20
Stage surface size(mm)
60×60
Guide mechanism
ball screw,φ6×1
Guide mechanism
crossed-roller bearing guides
Main body material and
surface treatments
Black anodized aluminum-alloy
Weight(Kg)
0.6
Shaft coupling (OD - OD1-
OD2)(mm)
16-3-5
Resolution (step/half-step)
(µm)
5/2.5
20-fine-subdivision
resolution (µm)
0.25
Max speed(mm/s)*
10
Repositioning accuracy
(µm)
≤±1.5
Backlash(um)
≤3
Static parallelism (mm)
≤0.08
Motion straightness(µm)
≤10
Motion parallelism (µm)
≤15
Minimum incremental motion (µm)**
≤5
Brand and model number
of motor
Shinano, STP-28D1003-08
Motor and its stepping
angle (°)
2 phase 28 stepping motor,
1.8
Insulation resistance
Above 100MΩ/Min
Insulating strength
"500V AC no abnormality within 1 minute"
Insulating level
UL B level
Weight(Kg)
0.11
Voltage(V)
Current
1.3A/phase
Resistance
1.45±10%Q/phase
Inductance
1.25mH/phase
Holding torque
0.0785N.m
Retarding torque
0.00294N.m(reference value)
Inertia of the rotor
8g.cm
Operating temperature
0~+50℃
Max operating temperature
for motor
80℃ Max
Brand and model number of
stepping driver (optional)
Moons, SR2
Type of plug for stage
DB9(pin)
Type of cable for stage
High flexibility cable (Helukabel, Germany)
Length of cables for
stages(m)
0.2
Position-limit sensors
(built-in)
2*GP1S09xHCP(Japan SHARP)
Origin-point sensors (built-
in)
1*GP1S09xHCPI(Japan SHARP)
Voltage of power supply for
sensors (V)
DC5-24V±10%
current consumption
<60 (total)
Control output
NPN open collector output DC5～24V 8mA or
less Residual voltage 0.3V or less (when load current is 2mA)
Status of output ports
output ON when sensor is blocked
Horizontal direction(kg)
8
Vertical direction(kg)
3
Inverted direction(kg)
4
