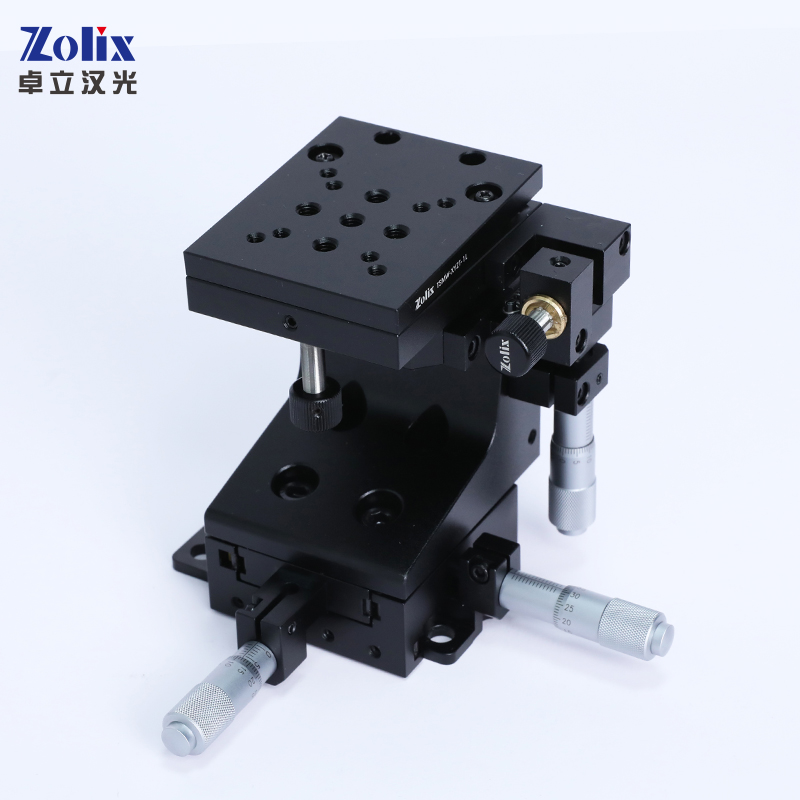

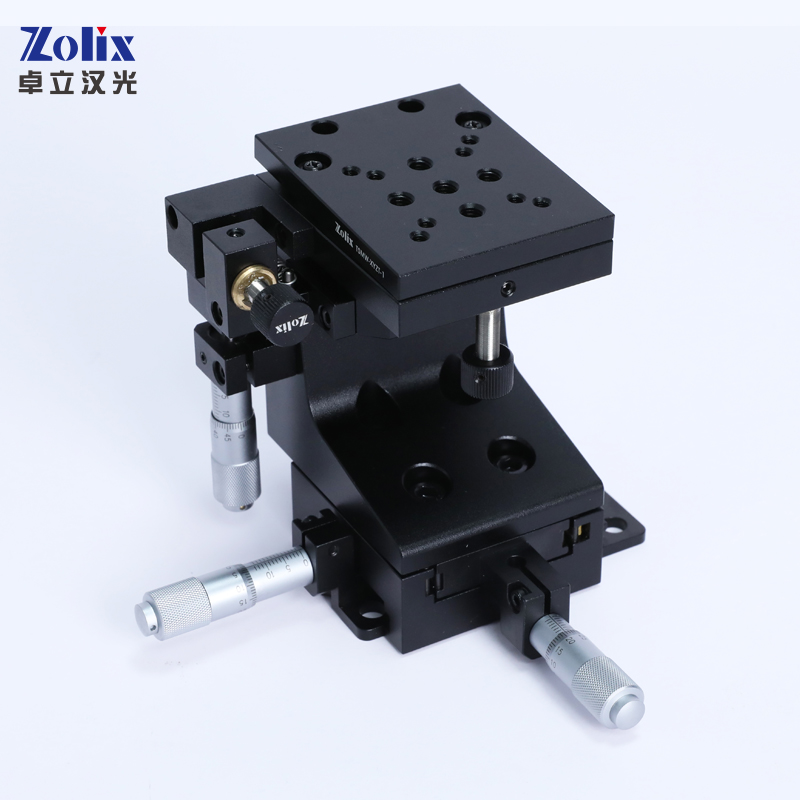

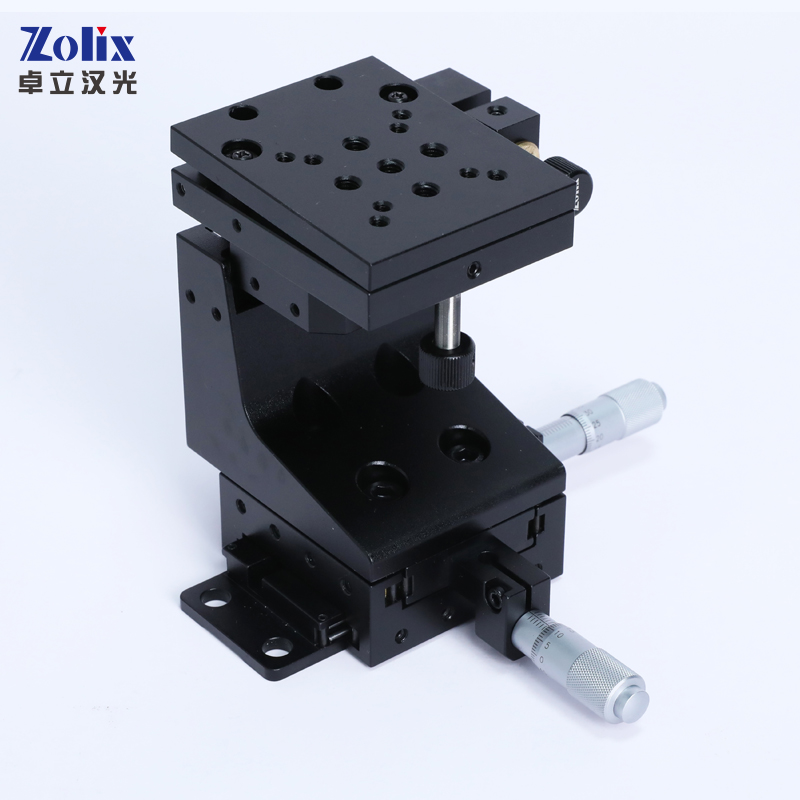

TSMW Series Bearing Linear Stage, 13mm XYZ Travel
.jpg)
.jpg)
.jpg)
.jpg)
TSMW Series Bearing Linear Stage, 13mm XYZ Travel
Features:
•Compact structure design, able to achieve five axis adjustment. Stage surface can be adjusted around the Z axis, Y axis.
•Right hand operation type and left hand operation type(model name end with L)
•Precision linear ball guide, micrometer drive, comfortable movement, high precision, spring return.
Show Filters:

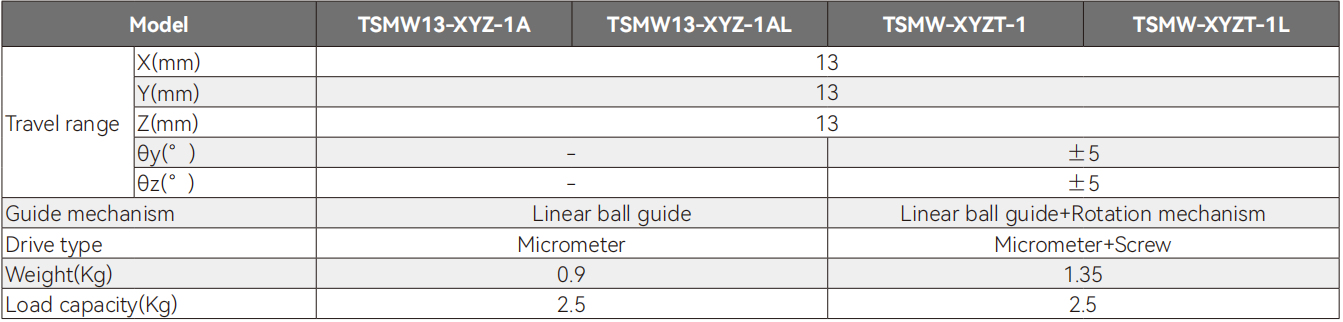

Selection Chart:
| Model | TSMW13-XYZ-1A | TSMW13-XYZ-1AL | TSMW-XYZT-1 | TSMW-XYZT-1L | |
| Travel range | X(mm) | 13 | 13 | 13 | 13 |
| Y(mm) | 13 | 13 | 13 | 13 | |
| Z(mm) | 13 | 13 | 13 | 13 | |
| θy(°) | - | - | ±5 | ±5 | |
| θz(°) | - | - | ±5 | ±5 | |
| Guide mechanism | Linear ball guide | Linear ball guide | Linear ball guide+Rotation mechanism | Linear ball guide+Rotation mechanism | |
| Drive type | Micrometer | Micrometer | Micrometer+Screw | Micrometer+Screw | |
| Weight(Kg) | 0.9 | 0.9 | 1.35 | 1.35 | |
| Load capacity(Kg) | 2.5 | 2.5 | 2.5 | 2.5 | |
