PHUP series Cardan Joint Base
PHUP series Cardan Joint Base

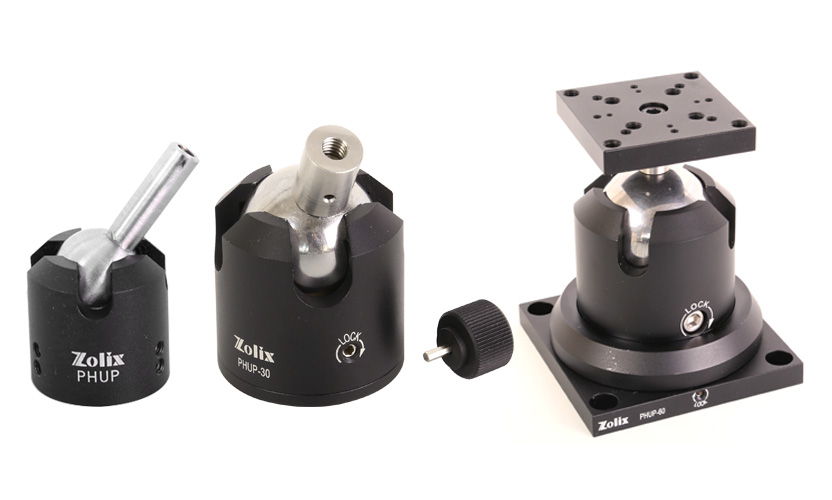

The PHUP series universal joint base features a ball and socket mounting platform, allowing for lockable angular positioning in any direction. It comes with a mounting plate and mounting holes, making it easy to connect with the posts, post holders and stages.
Features:
See All FeaturesShow Filters:
Selection Table:
| Model | PHUP | PHUP-30 | PHUP-60 |
| Post Diameter/Thread(mm) | Ø6/M4 | Ø12/M6 | Ø12/M6(with adaptor plate) |
| Pitch/yaw Tuning Range(°) | ±90 | ±90 | ±90 |
| Rotation Range(°) | — | — | 360 |
| Load Capacity(kg) | 1 | 5 | 20 |
| Max Torque(N·m) | 0.5 | 2.5 | 10 |
| Mounting Hole(mm) | M6 Thread hole | M6 Thread hole | Ø4-Ø6.5 through holes,counter bore Ø11 |
