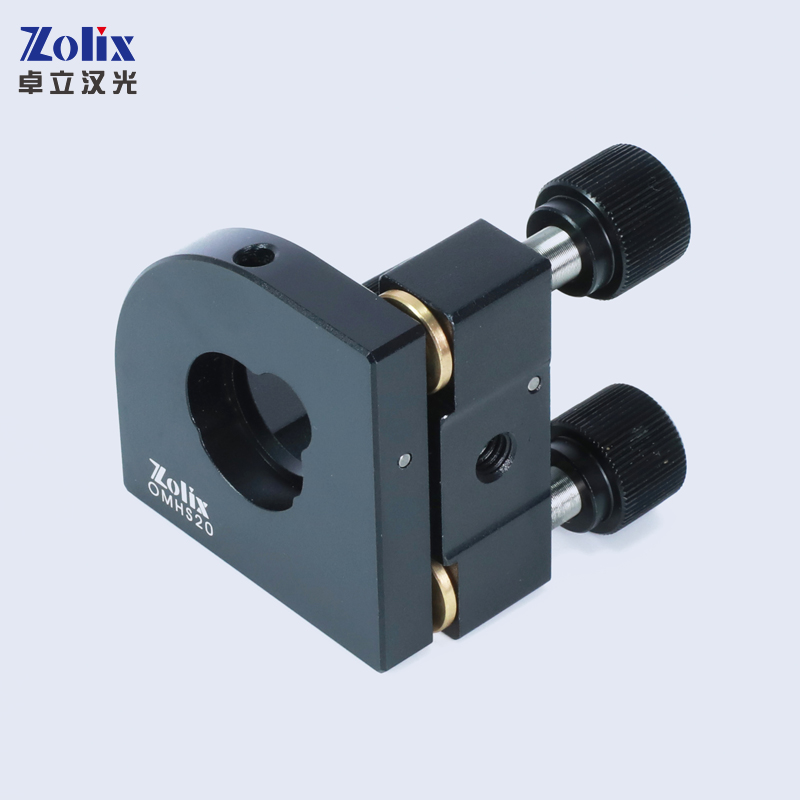

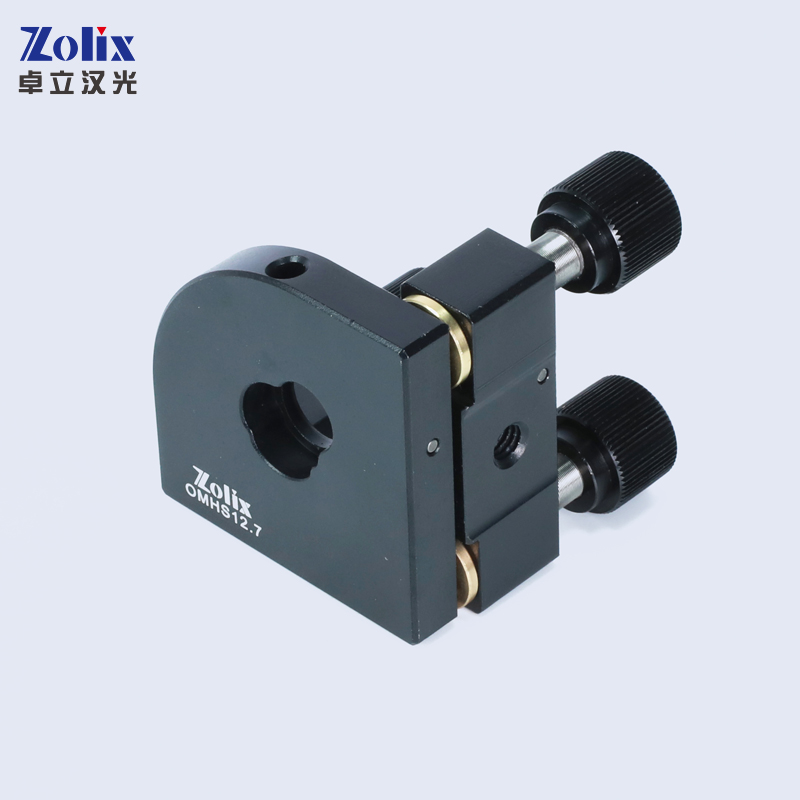

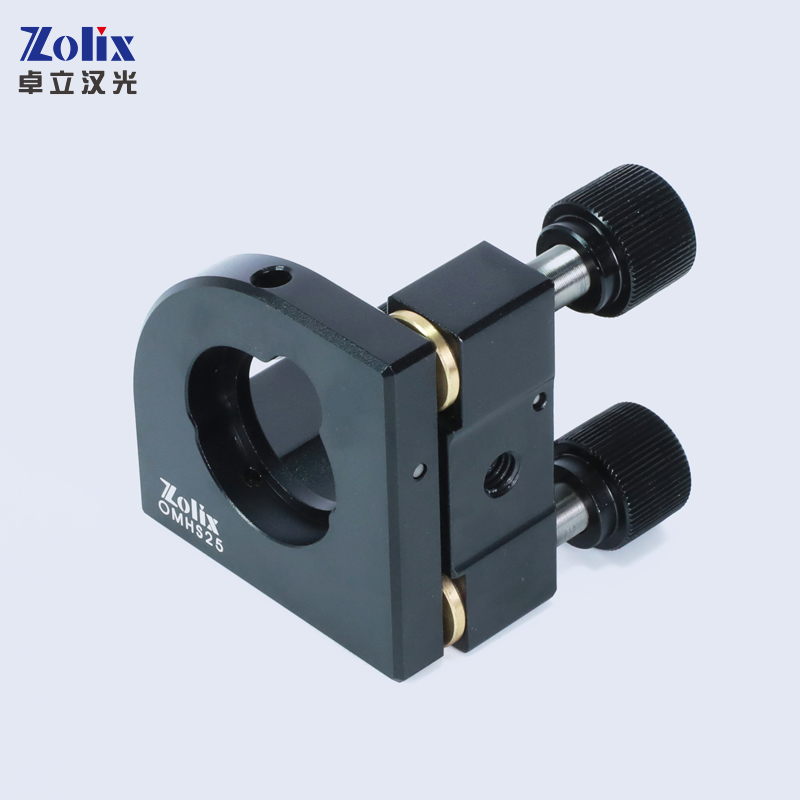

OMHS General Purpose Kinematic Mirror Mount

The OMHS series is a universal motion frame designed by Zolix, featuring an optimized structure and precision manufacturing process. The surface is anodized, making it suitable for darkroom experiments.




Features:

Adopt three sets of 0.25mm pitch super-fine screws for 3D adjustment, delivering highest sensitivity.
The product series is comprehensive, covering a range of sizes from Ø12.7 to Ø50.8 mm.
Each size includes a variety of lens mounting methods, including: closed type with hexagon headless screw(standard type), open type with hexagon headless screw(-B type), closed type with retaining ring(-C type).
Each adjustment frame can be divided into two types: without locking mechanism(standard type) and with locking mechanism(-S type).
See All Features
- +
Cart Contact Us

Show Filters:

Introduction：

The OMHS series is a universal motion frame designed by Zolix, featuring an optimized structure and precision manufacturing process. The surface is anodized, making it suitable for darkroom experiments.

Features:

• 3pcs 0.25 mm pitch fine thread pairs for 3D adjustment, for high sensitivity;
• Cover φ12.7~φ50.8 mm size
• Flexible fixing method : Standard with thumb wheel screw, option with open screw (-B) and elastic press ring(-C)
• Standrd without the locking drive; all model with option for locking (-S)
Selection Table:

Model

OMHS12.7(-S)

OMHS20(-S)

OMHS25(-S)

OMHS30(-S)

OMHS38.1(-S)

OMHS50.8(-S)

Optic Size (mm)

φ12.5/φ12.7

φ20

φ25/φ25.4

φ30

φ38.1

φ50/φ50.8

Optics Thickness (mm)

3~5

4~8

Adjustment Angle Range (°)

±3

Front Plate Translation (mm)

MAX6

Clear ApertureB(mm)

φ11

φ18

φ22

φ27

φ35

φ47

Optic Center Height (mm)

25

25

25

25

35

35

One Round of Screw Drive vs Angle Adjusted (°)

≈0.39

≈0.39

≈0.39

≈0.39

≈0.25

≈0.25

Main Body Material and Treatment

aluminium alloy, surface treated by black anodic oxidation.

Fixed Plate Thickness(mm)

18

Number of Pulling Spring

2

4

Mounting Hole

M6,φ8sink hole

Net Weight (g)

148(160)

142(154)

138(150)

135(147)

215(227)

185(197)


Model

OMHS12.7-B(S)

OMHS20-B(S)

OMHS25-B(S)

OMHS30-B(S)

OMHS38.1-B(S)

OMHS50.8-B(S)

Optic Size (mm)

φ12.5/φ12.7

φ20

φ25/φ25.4

φ30

φ38.1

φ50/φ50.8

Optics Thickness (mm)

3~5

4~8

Adjustment Angle Range (°)

±3

Front Plate Translation (mm)

MAX6

Clear ApertureB(mm)

φ11

φ18

φ22

φ27

φ35

φ47

Optic Center Height (mm)

25

25

25

25

35

35

One Round of Screw Drive vs Angle Adjusted (°)

≈0.39

≈0.39

≈0.39

≈0.39

≈0.25

≈0.25

Main Body Material and Treatment

aluminium alloy, surface treated by black anodic oxidation.

Fixed Plate Thickness(mm)

18

Number of Pulling Spring

2

4

Mounting Hole

M6,φ8sink hole

Net Weight (g)

138(150)

135(146)

132(143)

130(140)

195(206)

175(186)




Selection Table:

Model

OMHS12.7(-S)

OMHS20(-S)

OMHS25(-S)

OMHS30(-S)

OMHS38.1(-S)

OMHS50.8(-S)

Optic Size (mm)

φ12.5/φ12.7

φ20

φ25/φ25.4

φ30

φ38.1

φ50/φ50.8

Optics Thickness (mm)

3~5

4~8

Adjustment Angle Range (°)

±3

Front Plate Translation (mm)

MAX6

Clear ApertureB(mm)

φ11

φ18

φ22

φ27

φ35

φ47

Optic Center Height (mm)

25

25

25

25

35

35

One Round of Screw Drive vs Angle Adjusted (°)

≈0.39

≈0.39

≈0.39

≈0.39

≈0.25

≈0.25

Main Body Material and Treatment

aluminium alloy, surface treated by black anodic oxidation.

Fixed Plate Thickness(mm)

18

Number of Pulling Spring

2

4

Mounting Hole

M6,φ8sink hole

Net Weight (g)

148(160)

142(154)

138(150)

135(147)

215(227)

185(197)


Model

OMHS12.7-B(S)

OMHS20-B(S)

OMHS25-B(S)

OMHS30-B(S)

OMHS38.1-B(S)

OMHS50.8-B(S)

Optic Size (mm)

φ12.5/φ12.7

φ20

φ25/φ25.4

φ30

φ38.1

φ50/φ50.8

Optics Thickness (mm)

3~5

4~8

Adjustment Angle Range (°)

±3

Front Plate Translation (mm)

MAX6

Clear ApertureB(mm)

φ11

φ18

φ22

φ27

φ35

φ47

Optic Center Height (mm)

25

25

25

25

35

35

One Round of Screw Drive vs Angle Adjusted (°)

≈0.39

≈0.39

≈0.39

≈0.39

≈0.25

≈0.25

Main Body Material and Treatment

aluminium alloy, surface treated by black anodic oxidation.

Fixed Plate Thickness(mm)

18

Number of Pulling Spring

2

4

Mounting Hole

M6,φ8sink hole

Net Weight (g)

138(150)

135(146)

132(143)

130(140)

195(206)

175(186)
