NMUM Series Five-Axis Kinematic Mirror Mounts
NMUM series fve-axis adjustment frame is a new fve-axis special adjustment frame developed by Zolix.The main material of this series is high quality aluminum alloy. On the premise of ensuring stability, the center position and focus position of the lens can be adjusted according to the optical axis, with high stability and sensitivity, which is suitable for high-precision adjustment.
Features:
Show Filters:
Description:
NMUM series fve-axis adjustment frame is a new fve-axis special adjustment frame developed by Zolix.The main material of this series is high quality aluminum alloy. On the premise of ensuring stability, the center position and focus position of the lens can be adjusted according to the optical axis, with high stability and sensitivity, which is suitable for high-precision adjustment.
Features:
• Accomodate to 5 axes adjustment: X, Y, Z, θX, θY axis.
• High-quality black anodized aluminum alloy.
①3-axis precision positioning + 2-axis universal Angle adjustment
②Uniform tensile force distribution, stable structure
③The removable bottom plate is suitable for a variety of installation situations
• High sensitivity: 0.2mm pitch ultra-fine thread pair for adjustment, and with a locking mechanism, with higher sensitivity
• Good versatility: universal installation hole, M4, M6 screw can be installed

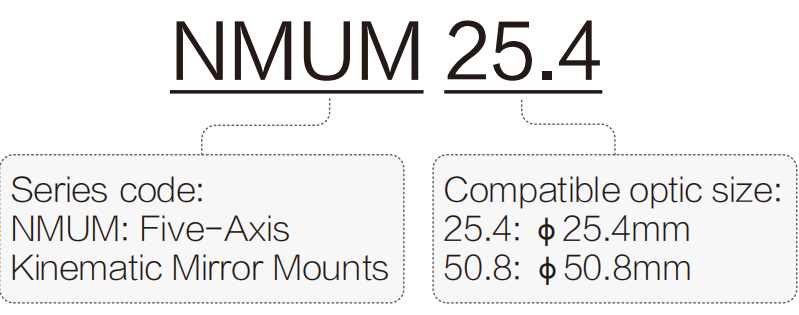

Naming rule:
Selection table:
| Model | NMUM25.4 | NMUM50.8 |
| Optic Size(mm) | φ25.4 | φ50.8 |
| Optic Edge Thickness (mm) | <20 | <20 |
| θx，θy Angular Range(°) | 士5 | 士5 |
| X, Y Axis Travel Range(mm) | 士2.5 | 士2.5 |
| Z Axis Travel Range(mm) | 6 | 6 |
| Clear Aperture(mm) | φ23 | φ47 |
| Optical Axis Height(mm) | 61.5 | 73.5 |
| Main Body Material andSurface Treatment | Black anodized aluminium alloy | Black anodized aluminium alloy |
| With Locking Mechanics | Yes | Yes |
| Mounting Hole | M4 、M6 | M6 |
| Net Weight(g) | 650 | 900 |
Selection table:
| Model | NMUM25.4 | NMUM50.8 |
| Optic Size(mm) | φ25.4 | φ50.8 |
| Optic Edge Thickness (mm) | <20 | <20 |
| θx，θy Angular Range(°) | 士5 | 士5 |
| X, Y Axis Travel Range(mm) | 士2.5 | 士2.5 |
| Z Axis Travel Range(mm) | 6 | 6 |
| Clear Aperture(mm) | φ23 | φ47 |
| Optical Axis Height(mm) | 61.5 | 73.5 |
| Main Body Material andSurface Treatment | Black anodized aluminium alloy | Black anodized aluminium alloy |
| With Locking Mechanics | Yes | Yes |
| Mounting Hole | M4 、M6 | M6 |
| Net Weight(g) | 650 | 900 |
