HiperS-320i Full Focal Plane Aberration-Free Imaging Spectrometer

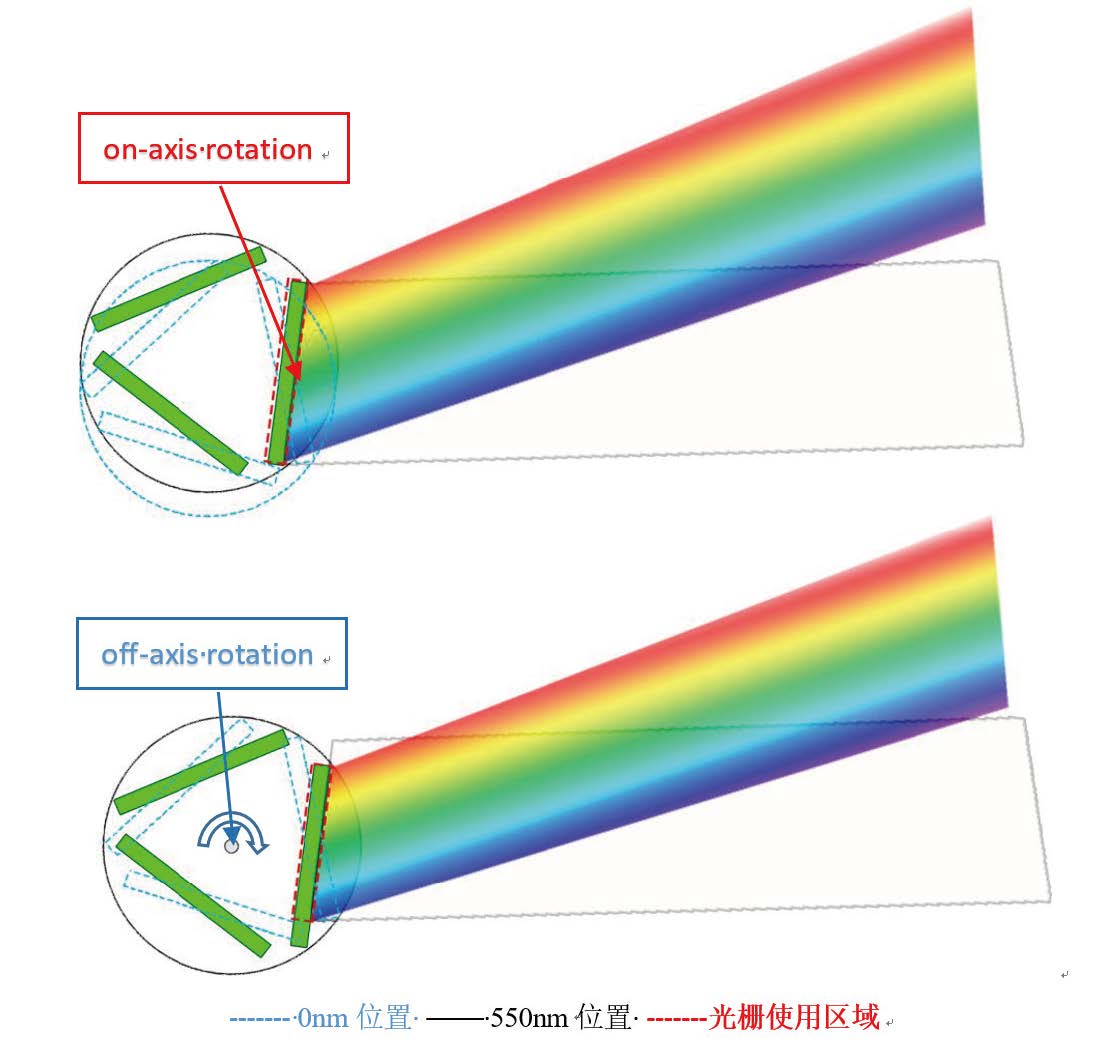

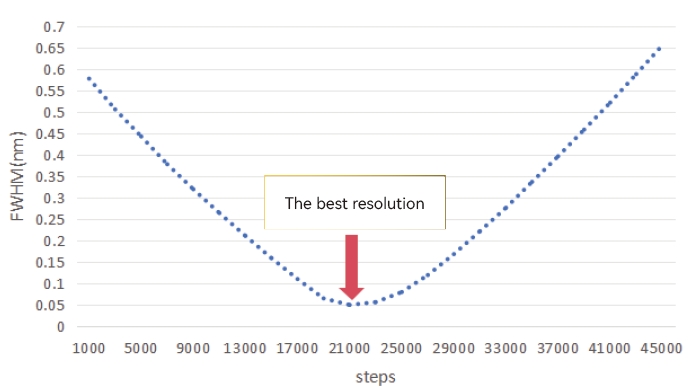

HiperS-320i is a full focal plane aberration corrected imaging spectrograph, benefit from on-axis rotation turret and automatic focus mirror, it can almost remove astigmatism across the focal plane. for superior multichannel capabilities. As a result, it not only provides superior multichannel capabilities, but also increases spectral resolution and contrast with more photons per pixel. At same time, thanks to the aberration corrected, the intensity values over the whole range of the CCD are reliable. They can be the better choice for the research on LIBS, Raman, Fluorescence and other molecular spectra measurements.
Features:

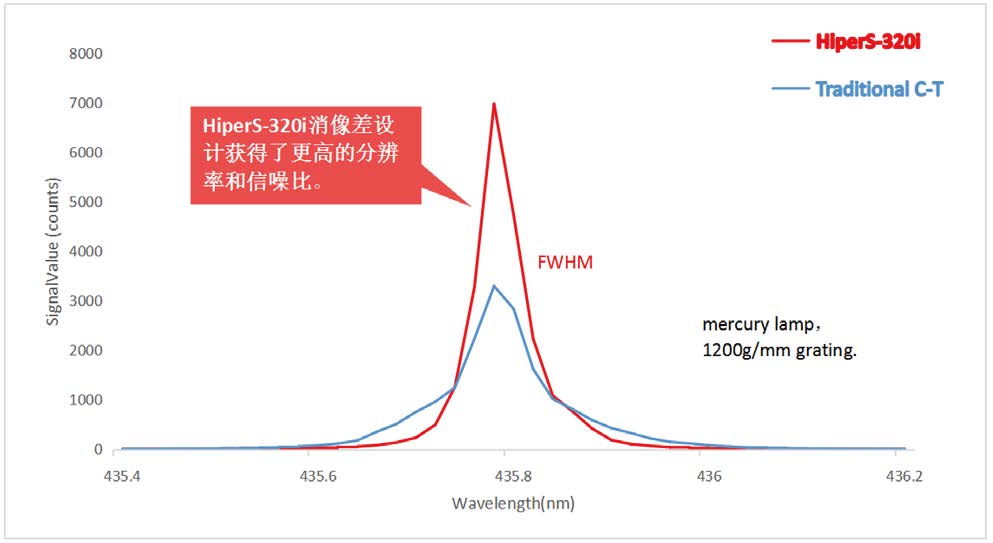

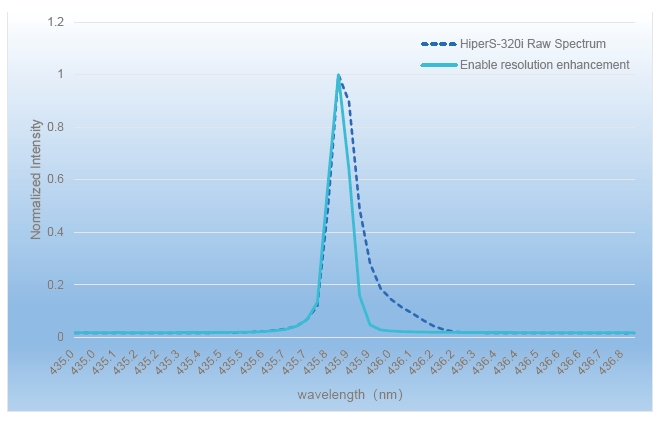

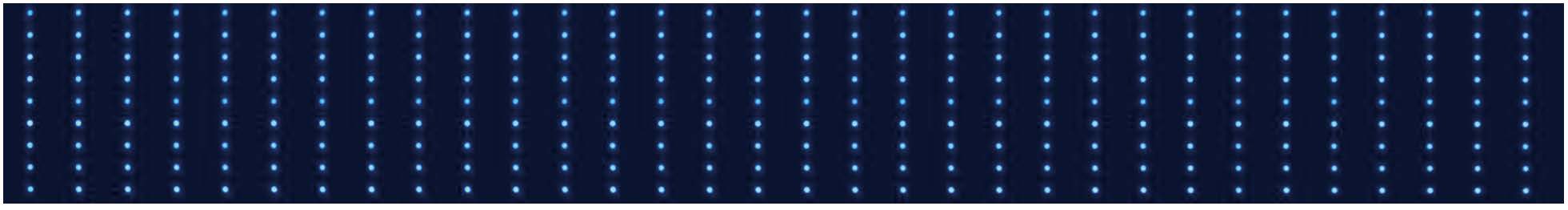

HiperS-320i aberration-free imaging spectrometer adopts full focal plane imaging correction technology to suppress aberrations to the maximum extent and obtain ideal imaging effects. At the same time, its light throughput and resolution have also been greatly improved. The high imaging quality brings high spatial resolution, making it compatible with multichannel spectral measurements.
|

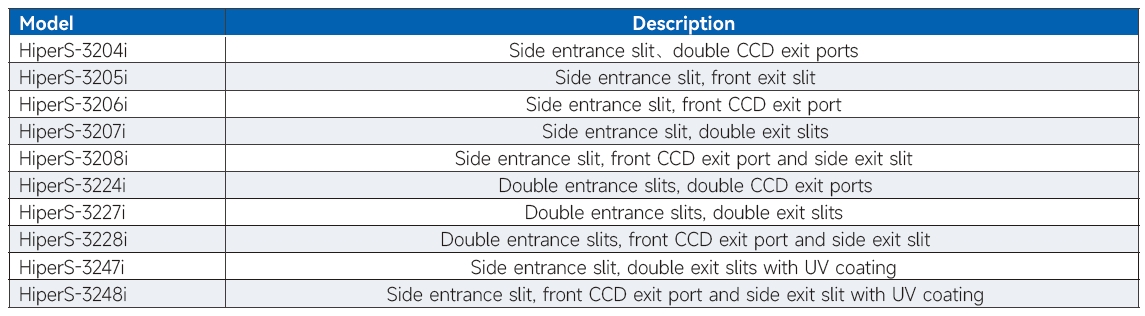

Model |
HiperS-320i |
|
Focal Length(mm) 320 |
320 |
|
Aperture Ratios F/4.4 |
F/4.4 |
|
ScanRange (nm) 0 ～ 1430 |
0 ～ 1430 |
|
Resolution (nm)-PMT 0.06 |
0.06 |
|
Resolution (nm)-CCD(15μm) 0.12 |
0.12 |
|
Dispersion(nm/mm) 2.29 |
2.29 |
|
Wavelength Accuracy (nm) ±0.2 |
±0.2 |
|
Wavelength Repeatability (nm) ±0.025 |
±0.025 |
|
Step(nm) 0.005 |
0.005 |
|
Stray Light 5×10-5 |
5×10-5 |
|
Focal Plane Size(mm) 29 (w) × 14 (h) |
29 (w) × 14 (h) |
|
Optical Axis Height (mm) |
156.3~171.3 |
|
Grating Size(mm) 68 × 68 |
68 × 68 |
|
Grating Mount |
On-axis Triple Turret |
|

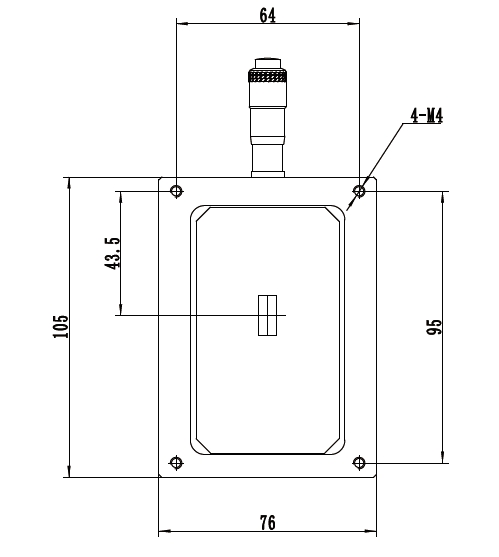

Slit |
0.01-3mm continuous manual adjustment，motorized slit is optional ；Slit hieght 2,4,14 mm swit chable |
|

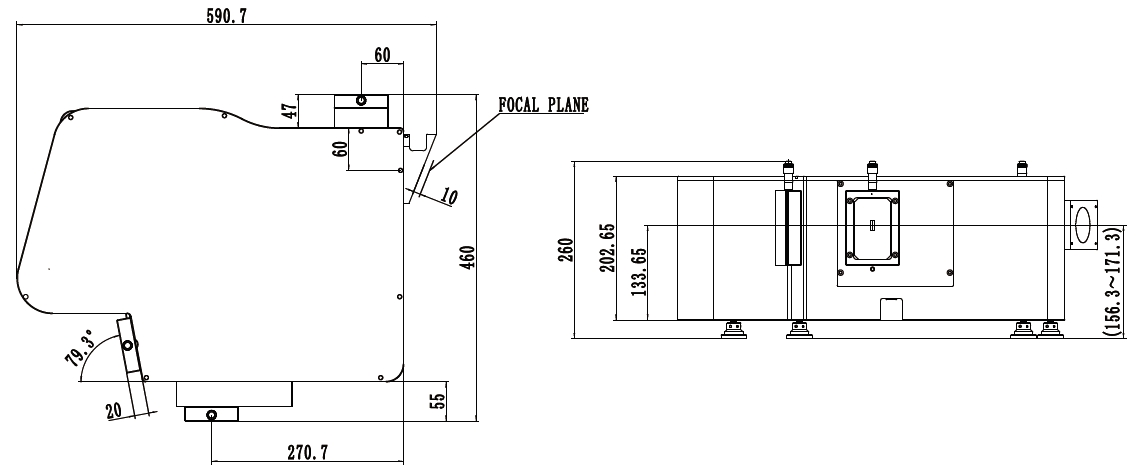

Size(mm)、Weight（kg） |
591 × 460 × 260 (L × W × H)，30kg |
|
Communication Interface |
USB2.0 or RS-232 |

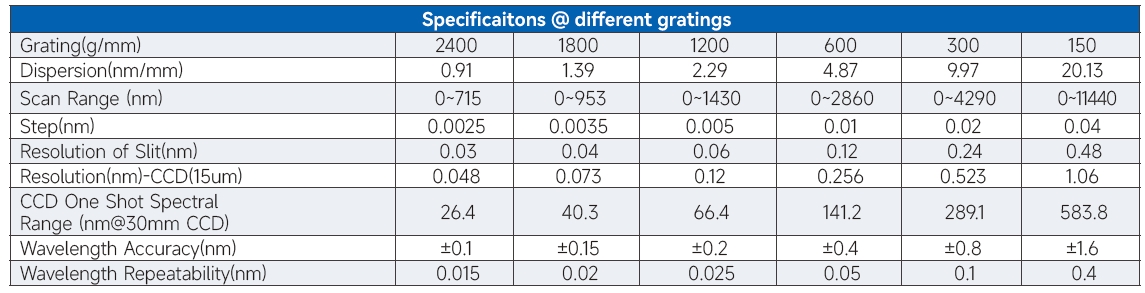

Specificaitons @ different gratings
|
Model |
HiperS-320i |
|
Focal Length(mm) 320 |
320 |
|
Aperture Ratios F/4.4 |
F/4.4 |
|
ScanRange (nm) 0 ～ 1430 |
0 ～ 1430 |
|
Resolution (nm)-PMT 0.06 |
0.06 |
|
Resolution (nm)-CCD(15μm) 0.12 |
0.12 |
|
Dispersion(nm/mm) 2.29 |
2.29 |
|
Wavelength Accuracy (nm) ±0.2 |
±0.2 |
|
Wavelength Repeatability (nm) ±0.025 |
±0.025 |
|
Step(nm) 0.005 |
0.005 |
|
Stray Light 5×10-5 |
5×10-5 |
|
Focal Plane Size(mm) 29 (w) × 14 (h) |
29 (w) × 14 (h) |
|
Optical Axis Height (mm) |
156.3~171.3 |
|
Grating Size(mm) 68 × 68 |
68 × 68 |
|
Grating Mount |
On-axis Triple Turret |
|
Slit |
0.01-3mm continuous manual adjustment，motorized slit is optional ；Slit hieght 2,4,14 mm swit chable |
|
Size(mm)、Weight（kg） |
591 × 460 × 260 (L × W × H)，30kg |
|
Communication Interface |
USB2.0 or RS-232 |
