SK Series High Precision Stainless Steel Manual Linear Stage
.jpg)
.jpg)
.jpg)

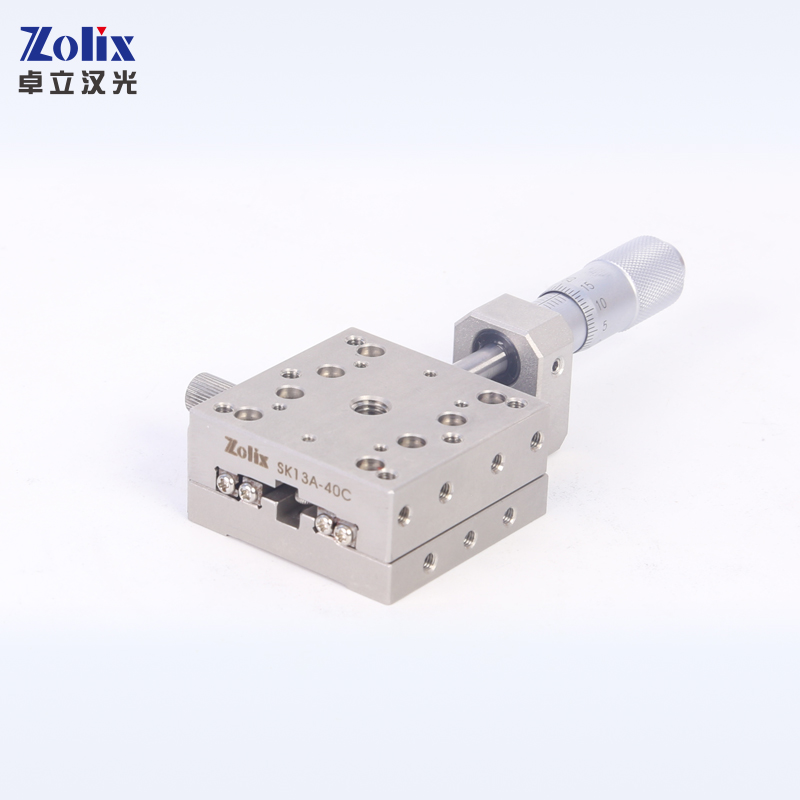

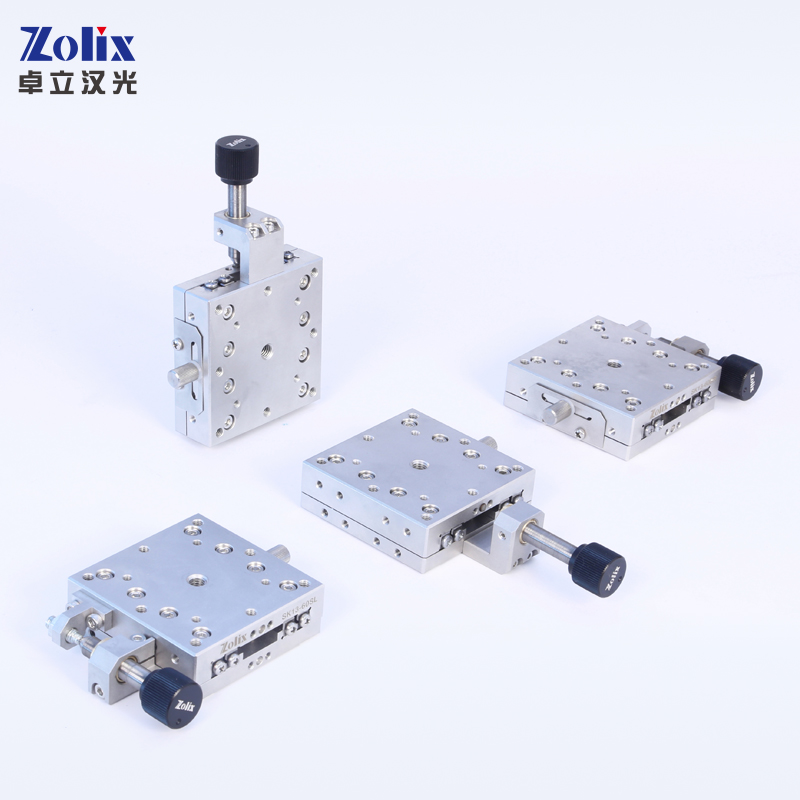

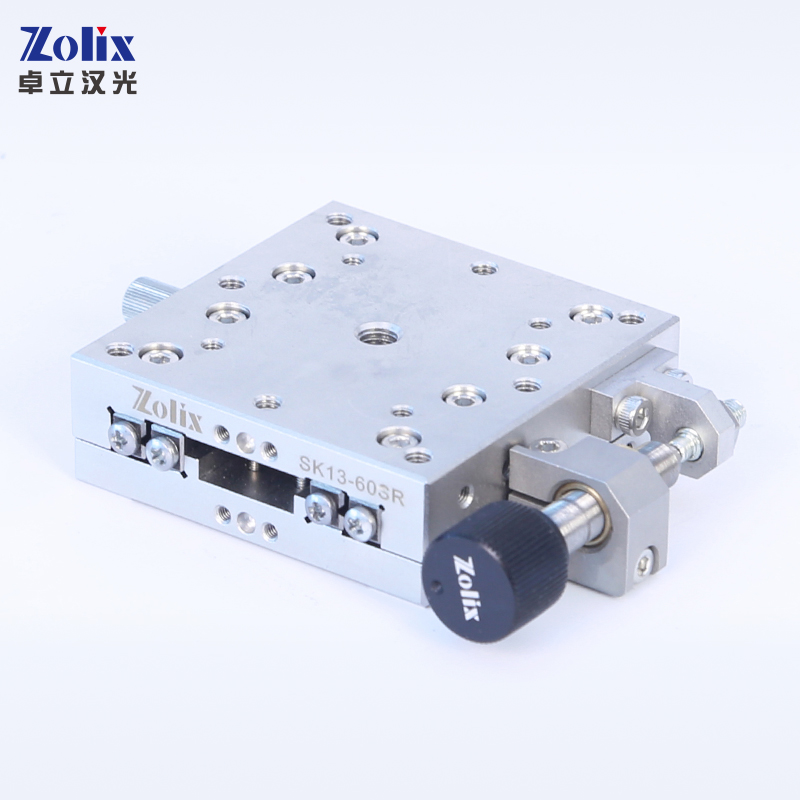

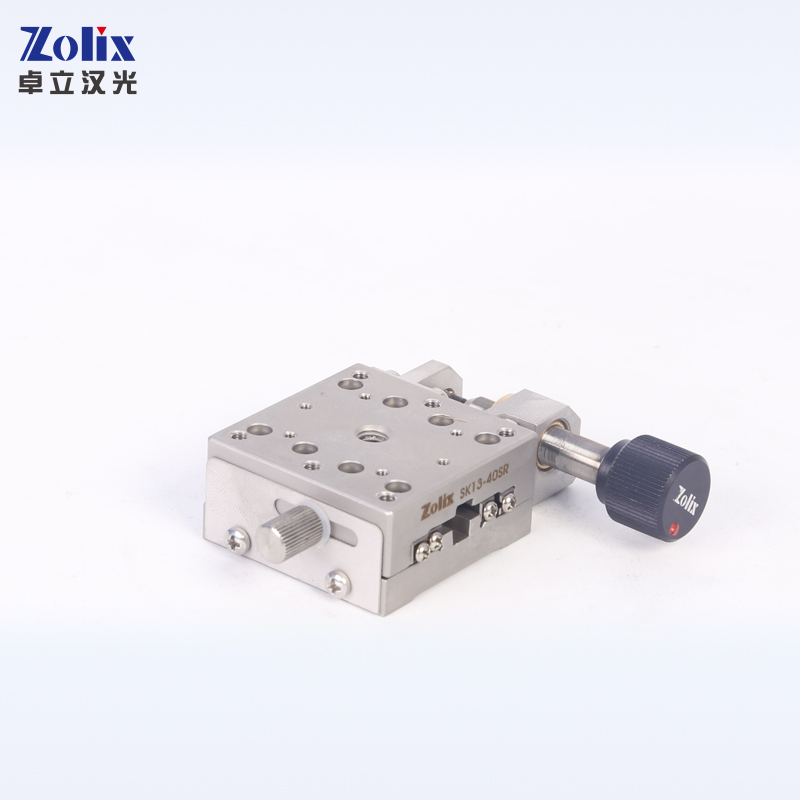

SK Series High Precision Stainless Steel Manual Linear Stage
The main material of this product is 304 stainless steel.Besides, by adopting ultra-high precision crossed-roller guide guide, precision micrometer Drive type, and Zolix unique machining technology, so this series of products have a high sensitivity of not less than 2µm, and smooth running, no beating phenomenon. This series of products has high versatility, suitable for high precision manual adjustment field, especially suitable for the load capacity, motion accuracy of the occasion with higher requirements, can also be used in vacuum environment.
Features:
•Sensitivity≤2µm
•The main material adopts 304 stainless steel feature high stability and good corrosion resistance;
•High precise crossed-roller guide ensures high sensitivity and good linearity deviation to reach leading level;
•Two drive types, micrometer and fine-tuning screw, are optional, are divided into left, right or center, flexible and convenient to use;
•High load capacity, moderate size, suitable for most application environments
Show Filters:

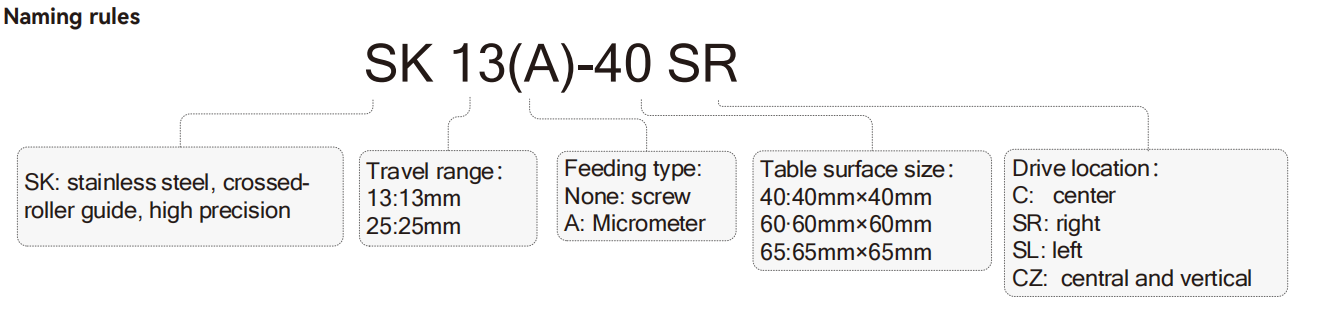

Naming Rules

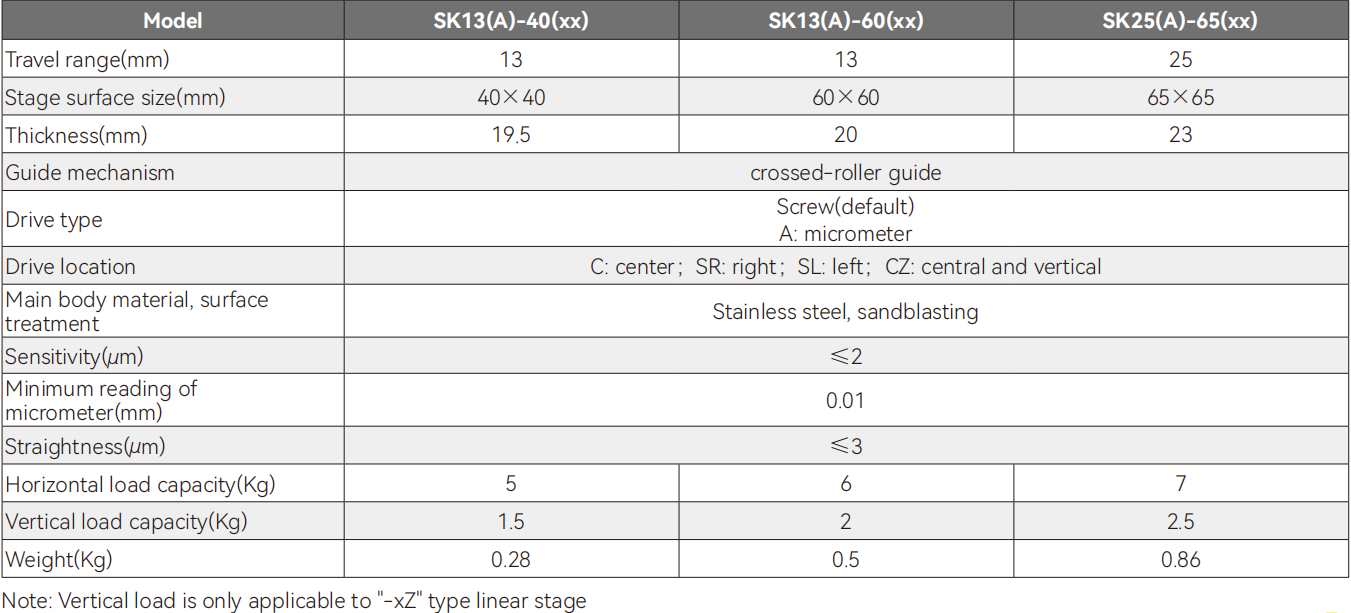

Selection Table
| Model | SK13(A)-40(xx) | SK13(A)-60(xx) | SK25(A)-65(xx) |
| Travel range(mm) | 13 | 13 | 25 |
| Stage surface size(mm) | 40×40 | 60×60 | 65×65 |
| Thickness(mm) | 19.5 | 20 | 23 |
| Guide mechanism | crossed-roller guide | crossed-roller guide | crossed-roller guide |
| Drive type | Screw(default) A：micrometer |
Screw(default) A：micrometer |
Screw(default) A：micrometer |
| Drive location | C:center；SR:right；SL:left；CZ:central and vertical | C:center；SR:right；SL:left；CZ:central and vertical | C:center；SR:right；SL:left；CZ:central and vertical |
| Main body material and surface treatment |
Stainless steel，sandblasting | Stainless steel，sandblasting | Stainless steel，sandblasting |
| Sensitivity(um) | ≤2 | ≤2 | ≤2 |
| Minimum reading of micrometer(mm) |
0.01 | 0.01 | 0.01 |
| Straightness(um) | ≤3 | 6 | 7 |
| Horizontal load capacity(Kg) | 5 | 6 | 7 |
| Vertical load capacity(Kg) | 1.5 | 2 | 2.5 |
| Weight(Kg) | 0.28 | 0.5 | 0.86 |
