DSM Series Aluminum Alloy Dovetail Guide Linear Stages
.jpg)
.jpg)
.jpg)

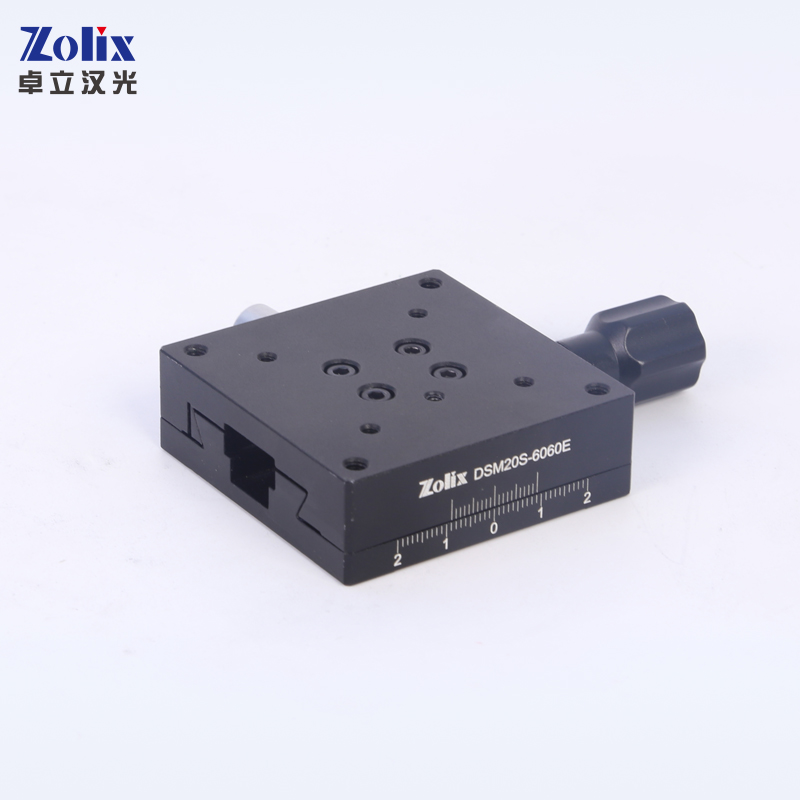

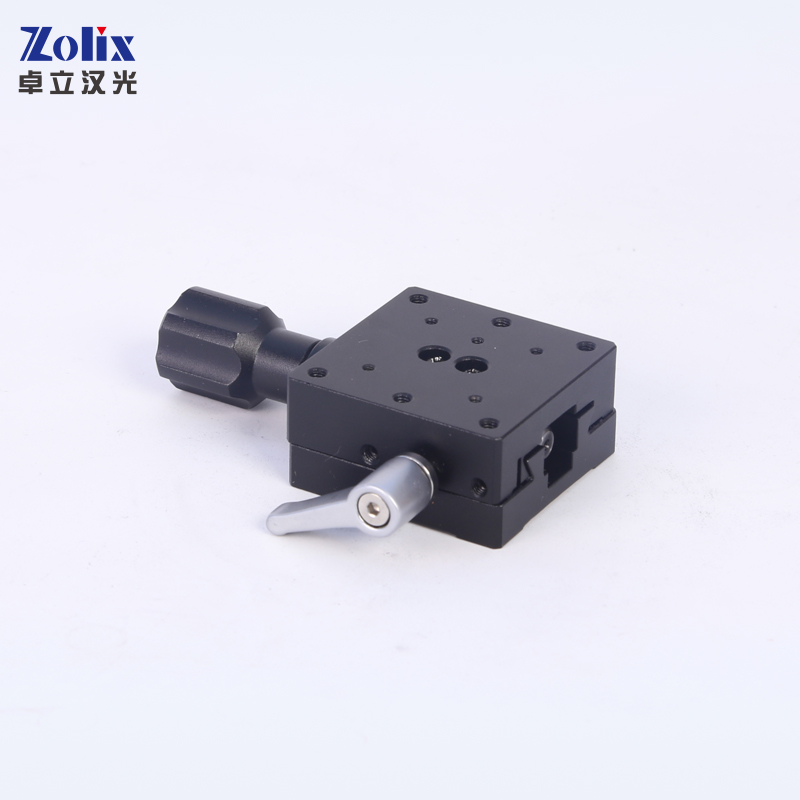

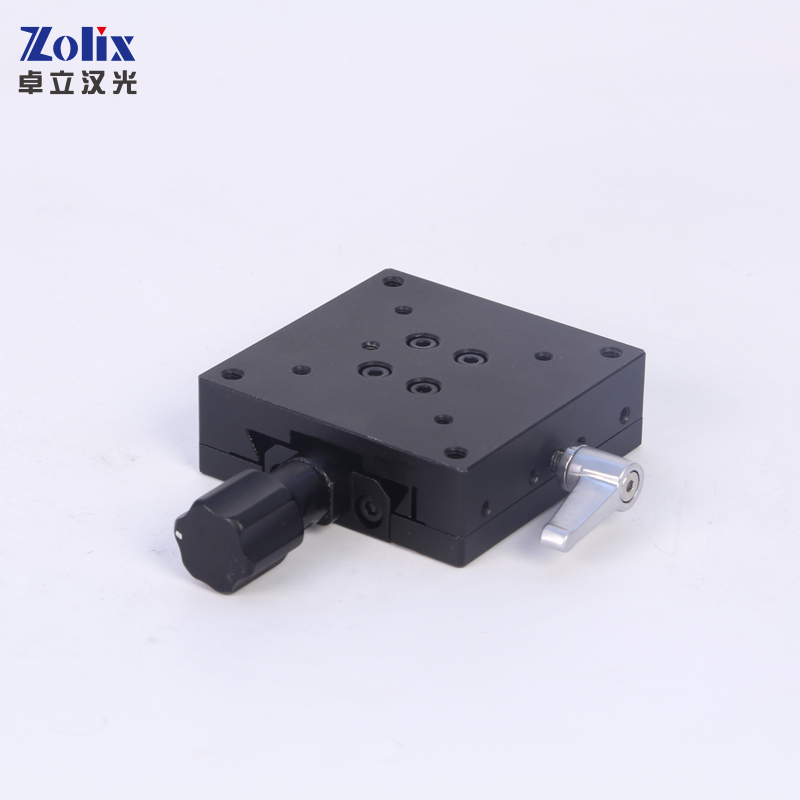

DSM Series Aluminum Alloy Dovetail Guide Linear Stages
The main material of this products is black anodized aluminum alloy. Grinding lead screw drive, dovetail guide guide are equipped to guarantee strong load capacity high sensitivity, and the adjustment speed is slow. In addition, due to the small diameter of the lead screw, it is not suitable for large travel applications. The product has a scale on the side and a locking function.
Features:
•Dovetail guide, high load capacity
•Grinding lead screw, better sensitivity
•Vernier scale for easy reading
•High stability: with excellent locking function
Show Filters:

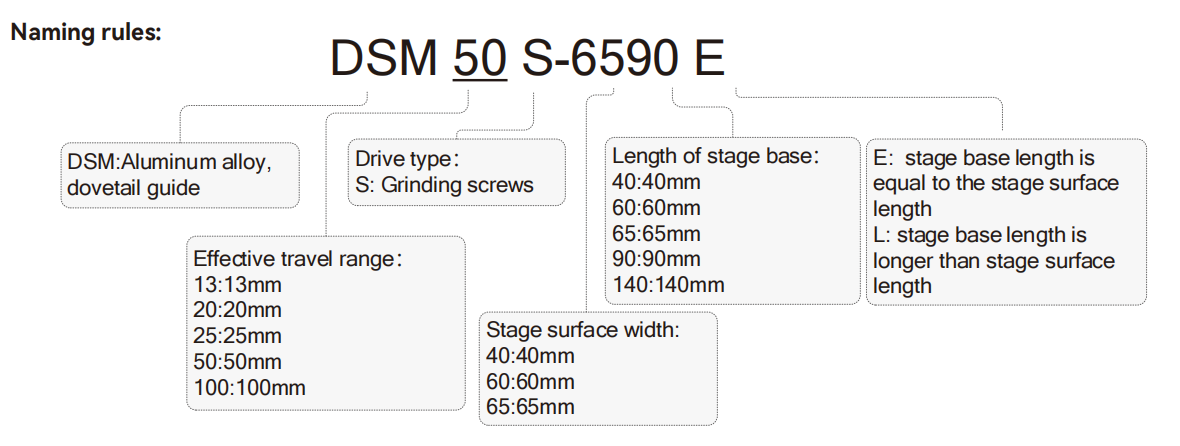

Naming Rules:

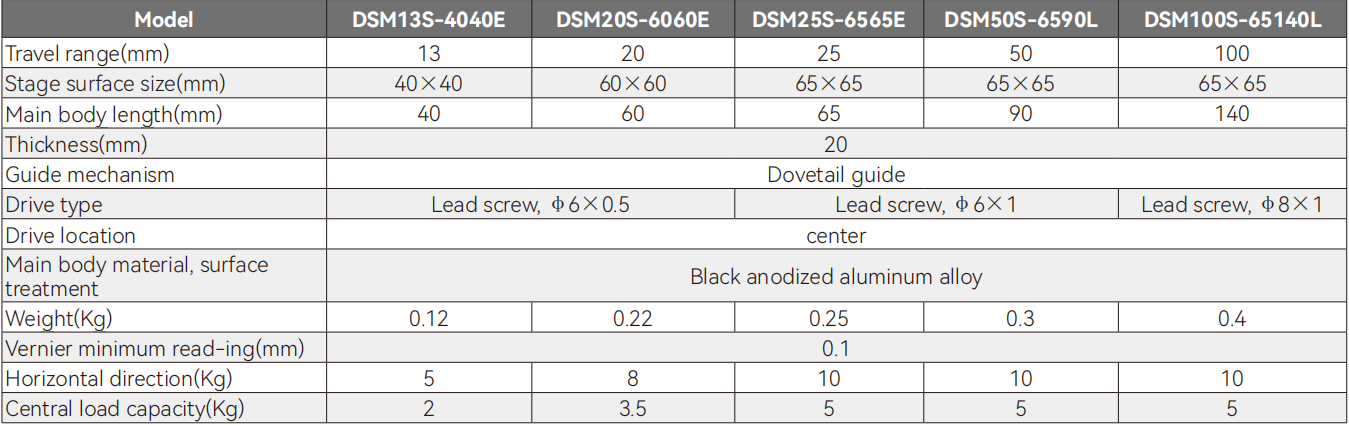

Selection Table
| Model | DSM13S-4040E | DSM20S-6060E | DSM25S-6565E | DSM50S-6590L | DSM100S-65140L |
| Travel range(mm) | 13 | 20 | 25 | 50 | 100 |
| Stage surface size(mm) | 40×40 | 60×60 | 65×65 | 65×65 | 65×65 |
| Main body length(mm) | 40 | 60 | 65 | 90 | 140 |
| Thickness(mm) | 20 | 20 | 20 | 20 | 20 |
| Guide mechanism | Dovetail guide | Dovetail guide | Dovetail guide | Dovetail guide | Dovetail guide |
| Drive type | Lead screw，φ6×0.5 | Lead screw，φ6×0.5 | Lead screw，φ6×1 | Lead screw，φ6×1 | Lead screw，φ8×1 |
| Drive location | center | center | center | center | center |
| Main body material and surface treatment |
Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy |
| Weight(Kg) | 0.12 | 0.22 | 0.25 | 0.3 | 0.4 |
| Vernier minimum read-ing (mm) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Horizontal direction(Kg) | 5 | 8 | 10 | 10 | 10 |
| Central load capacity(Kg) | 2 | 3.5 | 5 | 5 | 5 |
| Axes of Travel | X | X | X | X | X |
Filter：
Request for Information
Do you have any questions or requests? Use this form to contact our specialists.
