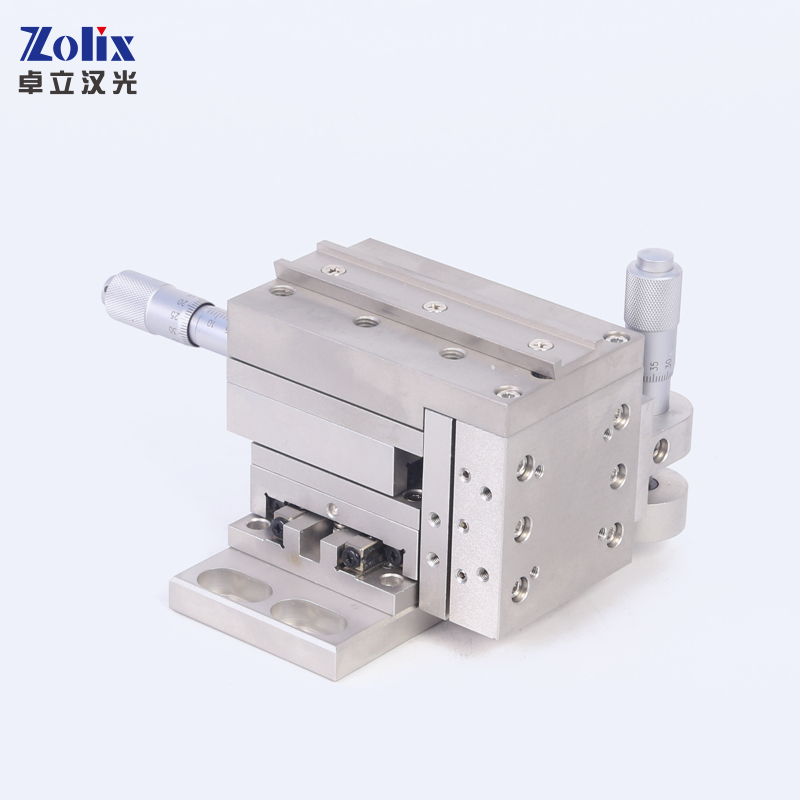

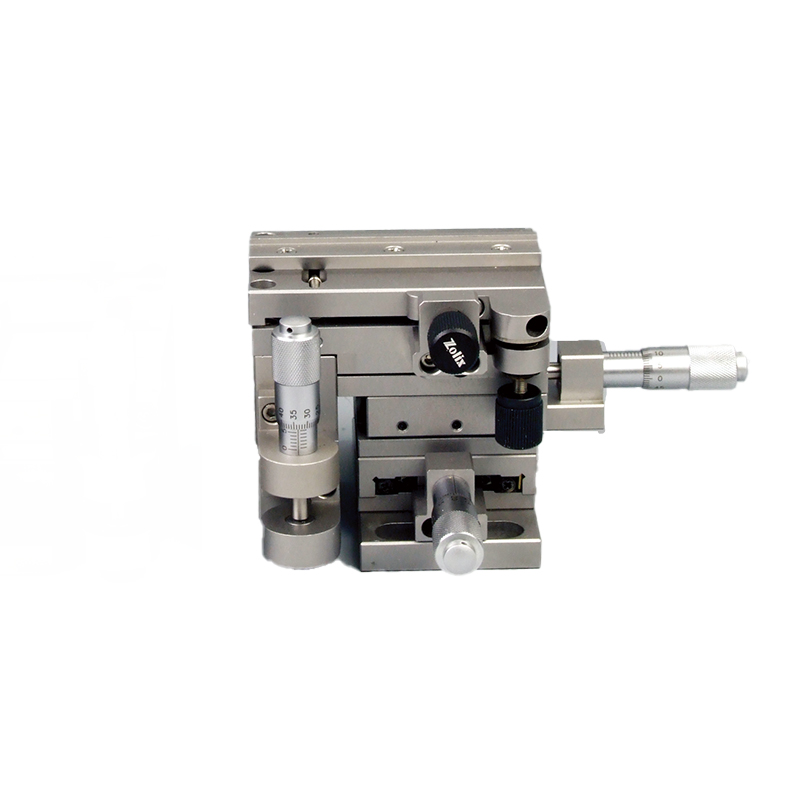

NFP-x561 series High Precision Fiber Alignment Stages
.jpg)
.jpg)
NFP-x561 series High Precision Fiber Alignment Stages
Features:
•Sensitivity≤1µm
•The main material is 304 stainless steel, with high stability and good corrosion resistance
•Ultra high precision crossed-roller guide, which can ensure that the sensitivity, straightness and other key indicators of the product
reach the international level
•Much higher cost-effective.
Show Filters:
Features:
•Sensitivity≤1µm
•The main material is 304 stainless steel, with high stability and good corrosion resistance
•Ultra high precision crossed-roller guide, which can ensure that the sensitivity, straightness and other key indicators of the product reach the international level
•Much higher cost-effective.
Naming Rules
Selection Table
| Model | NFP-GON10 | NFP-2561T(TL) | NFP-3561(L) | NFP-5561(L) | NFP-6561(L) | |
| Travel range | X(mm) | / | / | 13 | 13 | 13 |
| Y(mm) | / | / | 13 | 13 | 13 | |
| Z(mm) | / | / | 6 | 6 | 6 | |
| θx(°) | ±10 | / | / | / | ±10 | |
| θy(°) | / | -2~4 | / | -2~4 | -2~4 | |
| θz(°) | / | -4~4 | / | -4~4 | -4~4 | |
| Guide mechanism | Dovetail guide | rotational structure | Crossed-roller guide | Crossed-roller guide+rotation structure | Crossed-roller guide+rotation struc- ture+dovetail guide |
|
| Drive type | Micrometer | Screw | Micrometer | Micrometer+screw | Micrometer+screw | |
| Main body material and | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | |
| Sensitivity | ≤6” | / | ≤1µm | ≤1µm | ≤1µm | |
| Linearity Deviation(um) | / | / | ≤3 | ≤3 | ≤3 | |
| Weight(Kg) | 0.31 | 1.2 | 1.8 | 2.2 | 2.5 | |
