PHLM series Cylinder Laser Tube Kinematic Mount

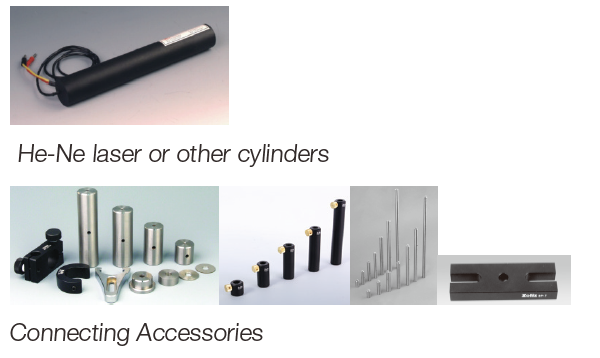

Cylinder laser tube kinematic mount design for the HeNe laser tube or other lasers with cylinder tube, for more simple in tuning and stable of holding.
Features:
Show Filters:
Features:
|
Model |
PHLM-1 |
PHLM-2 |
PHLM-3 |
|
|
Optic Size (mm) |
φ5~φ60 |
φ25~φ45 |
φ25~φ45 |
|
|
Adjustment Angle Range (°) |
±5 |
/ |
±3 |
|
|
One Round of Screw Drive vs Angle Adjusted (°) |
Tilt(°) |
≈0.08 |
/ |
≈0.23 |
|
|
Tilt(°) |
≈0.36 |
/ |
≈0.24 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|||
|
Overall Height(mm) |
150 |
62 |
72 |
|
|
Mounting Hole |
sink holeφ11 |
|||
|
Net Weight (g) |
780 |
450 |
650 |
|
