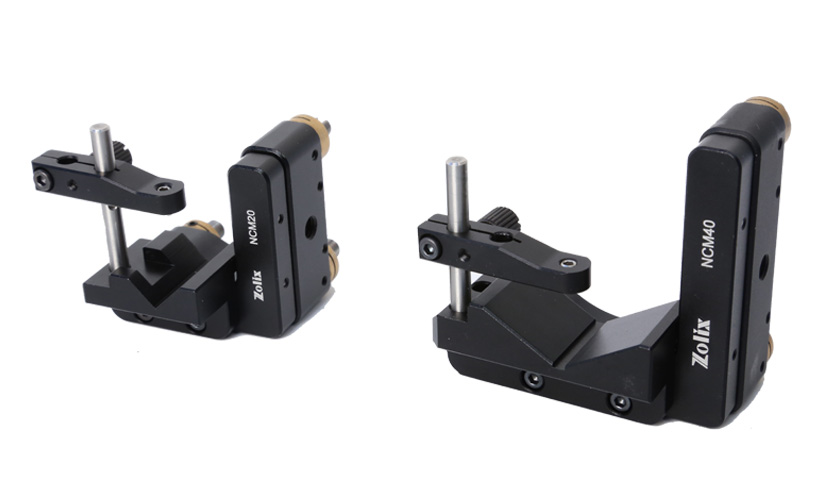

NCM series V Clamp Kinematic Mount
NCM series products are specially designed for cylindrical optics, which can provide 3D adjustment
Features:
Show Filters:
Features:
|
Model |
NCM20 |
NCM40 |
|
Optic Size (mm) |
φ6~φ20 |
φ10~φ40 |
|
Adjustment Angle Range (°) |
±3 |
|
|
Front Plate Translation (mm) |
MAX6 |
|
|
One Round of Screw Drive vs Angle Adjusted (°) |
≈0.32 |
≈0.2 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|
|
Overall Height(mm) |
57.5 |
79 |
|
Fixed Plate Thickness(mm) |
18 |
|
|
V Groove Width(mm) |
15 |
38 |
|
Number of Pulling Spring |
4 |
|
|
Locking Mechanics |
Yes |
|
|
Mounting Hole |
M6，sink holeφ8 |
|
|
Net Weight (g) |
170 |
230 |
Selection Table:
|
Model |
NCM20 |
NCM40 |
|
Optic Size (mm) |
φ6~φ20 |
φ10~φ40 |
|
Adjustment Angle Range (°) |
±3 |
|
|
Front Plate Translation (mm) |
MAX6 |
|
|
One Round of Screw Drive vs Angle Adjusted (°) |
≈0.32 |
≈0.2 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|
|
Overall Height(mm) |
57.5 |
79 |
|
Fixed Plate Thickness(mm) |
18 |
|
|
V Groove Width(mm) |
15 |
38 |
|
Number of Pulling Spring |
4 |
|
|
Locking Mechanics |
Yes |
|
|
Mounting Hole |
M6，sink holeφ8 |
|
|
Net Weight (g) |
170 |
230 |
