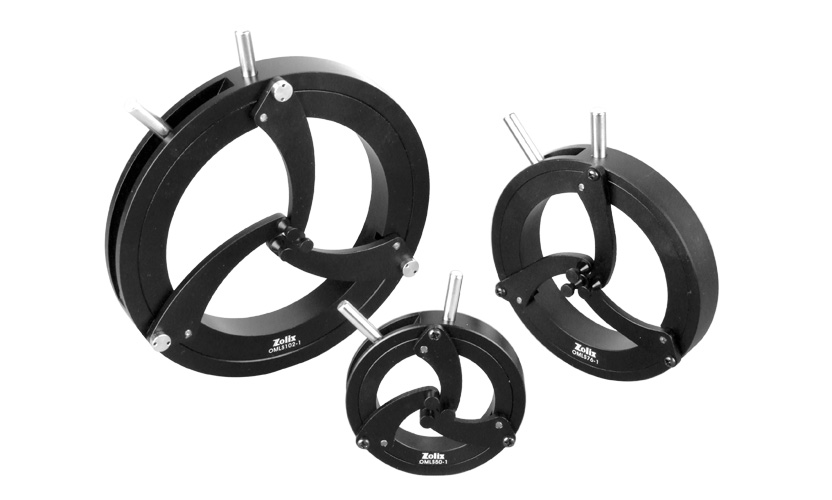

OMLS series Self-Centering Lens Mount
OMLS series self-centering lens mount using for holding different size of lens ,becasue of the self-centering function ,when you change another size of lens from time to time , the optical center keeps the same.
Features:
Show Filters:
Features:
|
Model |
OMLS50-1 |
OMLS76-1 |
OMLS102-1 |
|
Optic Size (mm) |
φ5~φ50 |
φ5~φ76 |
φ5~φ102 |
|
Max Clear Aperture A (mm) |
φ46 |
φ72 |
φ100 |
|
Outline Diameter (mm) |
φ70 |
φ102 |
φ140 |
|
Optic Center Height (mm) |
34.5 |
50.5 |
69.5 |
|
Overall Height(mm) |
88.5 |
121.4 |
159.3 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
||
|
Overall Thickness (mm) |
19 |
30 |
30 |
|
Number of Pulling Spring |
2 |
||
|
Mounting Hole |
M6 |
||
|
Net Weight (g) |
85 |
198 |
355 |
