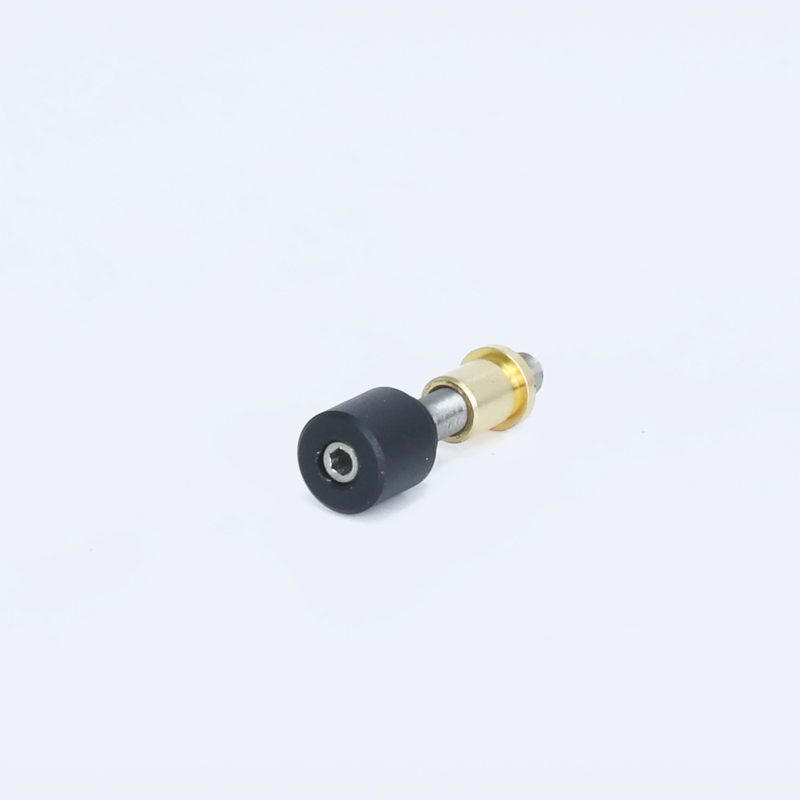

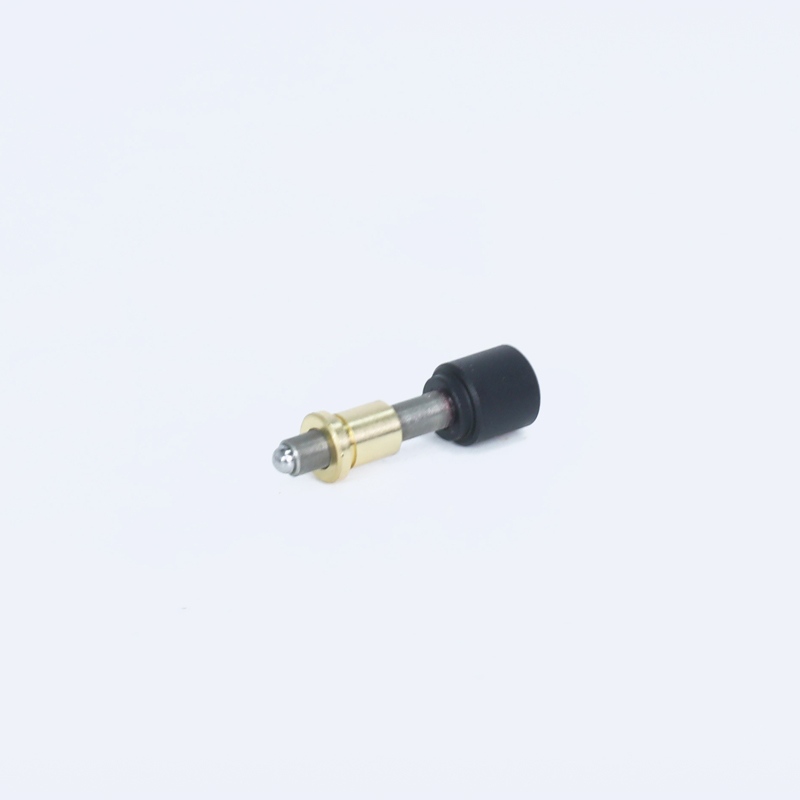

NAFS Series Adjustment Screw
.jpg)
.jpg)
.jpg)
NAFS Series Adjustment Screw
Description:
NAFS is based on ACFS series thread, we adopt 0.1mm/0.2mm pitch in this products to reach ultimate precision adjustment.
Features:
See All FeaturesShow Filters:
Selection table:
| Model | NAFS6-M4-0.1P | NAFS13-M4-0.1P | NAFS6-M6-0.1P | NAFS13-M6-0.1P |
| Translation Range(mm) | 6 | 13 | 6 | 13 |
| Adjustment Screw and Pitch | M4×0.1 | M6×0.1 | ||
| Mounting Diameter(mm) | Ø6 | Ø9.5 | ||
| Mounting Length(mm) | 7 | 9.5 | ||
| Overall Length(mm) | 30.5 | 37 | 40.5 | 47 |
| Thumb Wheel Diameter(mm) | Ø9 | Ø13 | ||
| Model | NAFS6-M4-0.2P | NAFS13-M4-0.2P | NAFS6-M6-0.2P | NAFS13-M6-0.2P |
| Translation Range(mm) | 6 | 13 | 6 | 13 |
| Adjustment Screw and Pitch | M4×0.2 | M6×0.2 | ||
| Mounting Diameter(mm) | Ø6 | Ø9.5 | ||
| Mounting Length(mm) | 7 | 9.5 | ||
| Overall Length(mm) | 30.5 | 37 | 40.5 | 47 |
| Thumb Wheel Diameter(mm) | Ø9 | Ø13 | ||
| Model | 2.7-3.0 | AUS25.4-3.0 | NLXY25.4-6.0 | NLXY50.8-6.0 |
| Translation Range(mm) | 4 | 8.5 | 4 | 4 |
| Adjustment Screw and Pitch | M4×0.2 | M6×0.2 | M4×0.2 | M6×0.2 |
| Mounting Size(mm) | M6×0.5 | M9×0.5 | M6×0.5 | M9×0.5 |
| Mounting Length(mm) | 10.5 | 14 | 7.5 | |
| Overall Length(mm) | 21.5 | 32.5 | 27 | 34.5 |
| Thumb Wheel Diameter(mm) | / | Ø9 | Ø13 | |
| Locking Direction | Axial locking | |||
