MAD25-45MH-xx series 45 Mirror Adaptor

Home > Products > Optomechanics and Optics > Optical Component Mounts > Kinematic Mirror Mount> MAD25-45MH-xx series 45 Mirror Adaptor

MAD25-45MH-xx series 45 Mirror Adaptor

Features:

See All Features

- +

Cart Contact Us

Show Filters:

Brief Introduction:

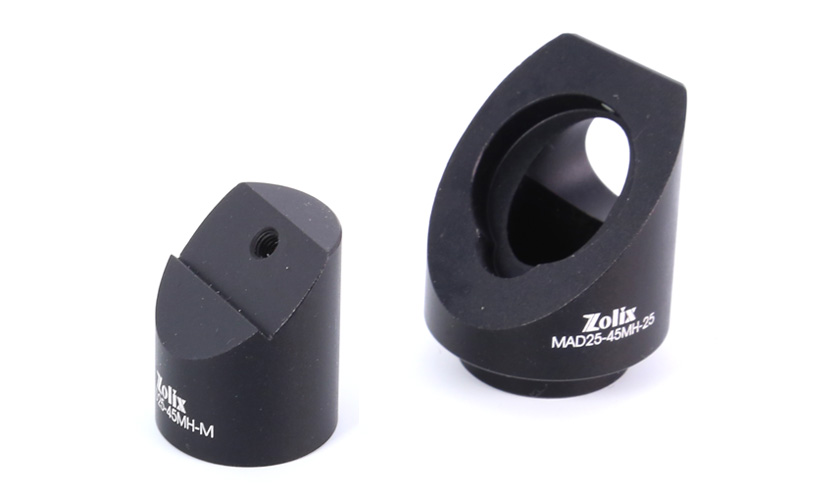

MAD25-45MH-xx series 45 degree mirror adaptor come with through hole ranging from Ø12.7mm to Ø30mm, which is easy to change the optical path direction, mirror or the beam splitter can be mounted on this adaptor. MAD25-45MH-M is a connecting rod with Ø25mm diameter, which can be mounted under mirror mount to rotate mirror mount by 45°. It is also compatible with OMUS/OMHS mirror mount.

Selection Table:

Model	Name	Mirror Size(mm)	Mirror Thick(mm)	Mounting Hole Diameter(mm)
MAD25-45MH-12.7	45 deg Mirror holder	φ12.7	3~5	φ25
MAD25-45MH-20	45 deg Mirror holder	φ20	3~5	φ25
MAD25-45MH-25	45 deg Mirror holder	φ25	3~5	φ25
MAD25-45MH-30	45 deg Mirror holder	φ30	3~5	φ25
MAD25-45MH-M	45 deg adaptor for kinematic mirror mount	adaptor for the OMUS/OMHS series kinematic mirror mount		M4 on the top M6 at the bottom

Selection Table:

Model	Name	Mirror Size(mm)	Mirror Thick(mm)	Mounting Hole Diameter(mm)
MAD25-45MH-12.7	45 deg Mirror holder	φ12.7	3~5	φ25
MAD25-45MH-20	45 deg Mirror holder	φ20	3~5	φ25
MAD25-45MH-25	45 deg Mirror holder	φ25	3~5	φ25
MAD25-45MH-30	45 deg Mirror holder	φ30	3~5	φ25
MAD25-45MH-M	45 deg adaptor for kinematic mirror mount	adaptor for the OMUS/OMHS series kinematic mirror mount		M4 on the top M6 at the bottom
