NFP Series Crossed-Roller Bearing High Precision Linear Stages
.JPG)
.JPG)
.JPG)
.JPG)

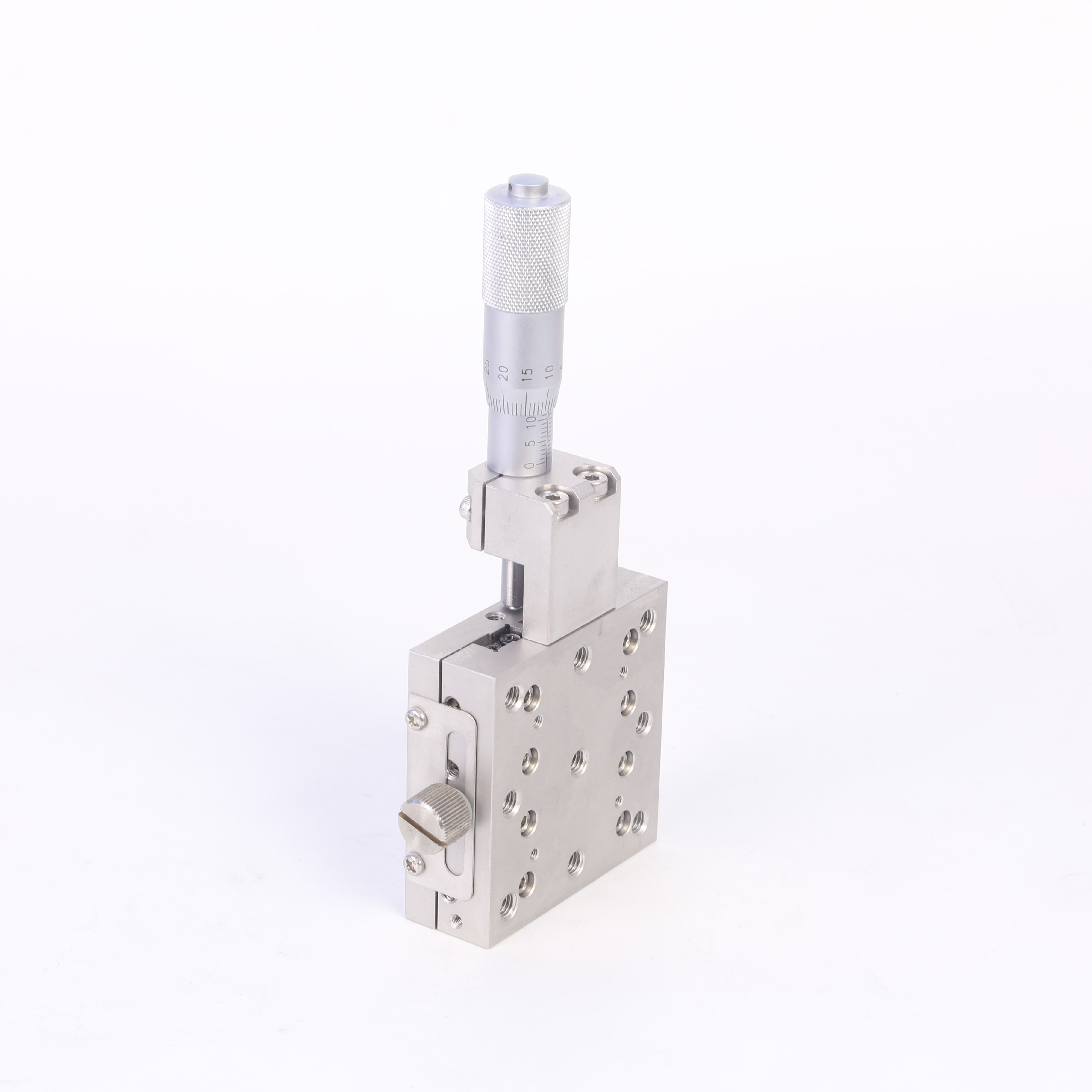

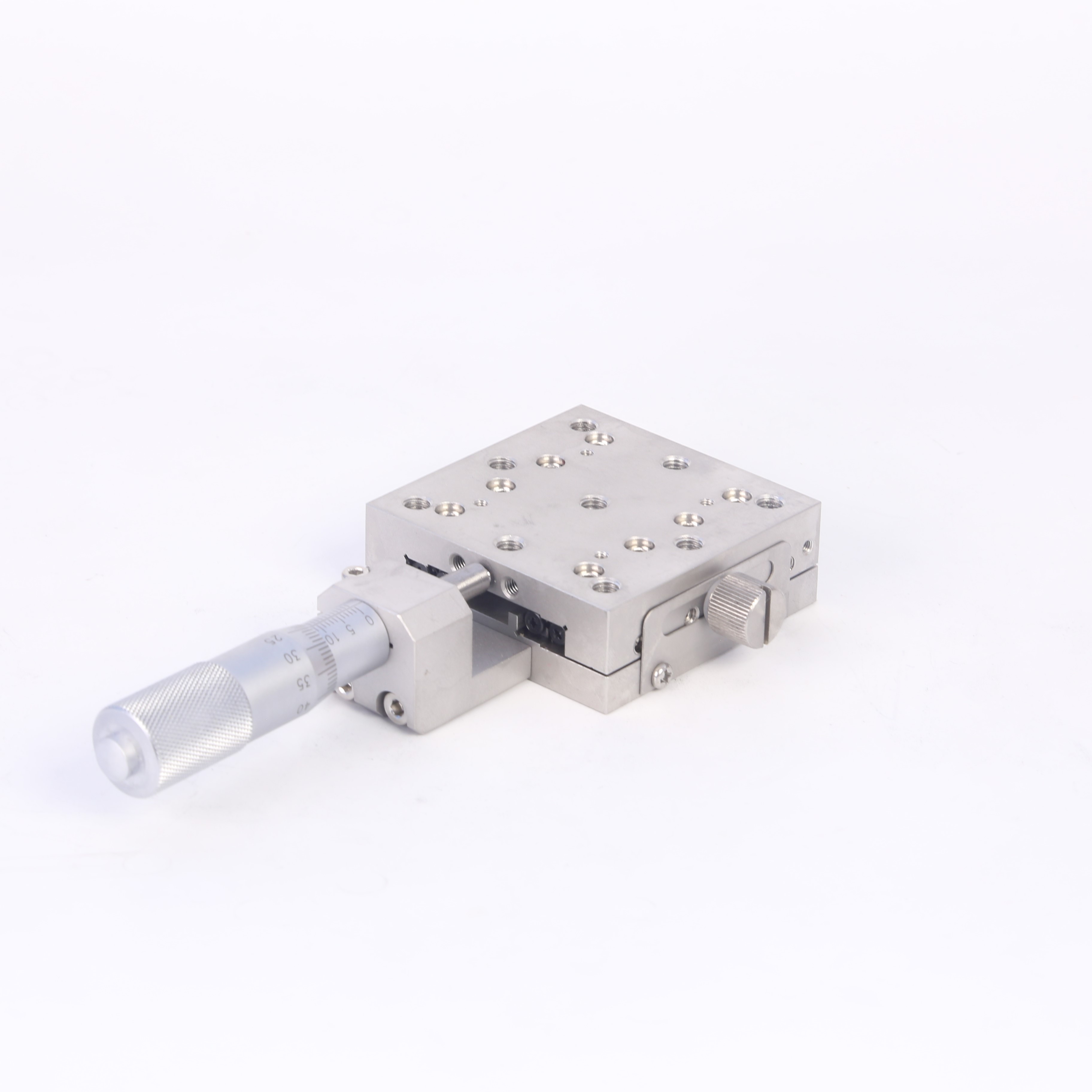

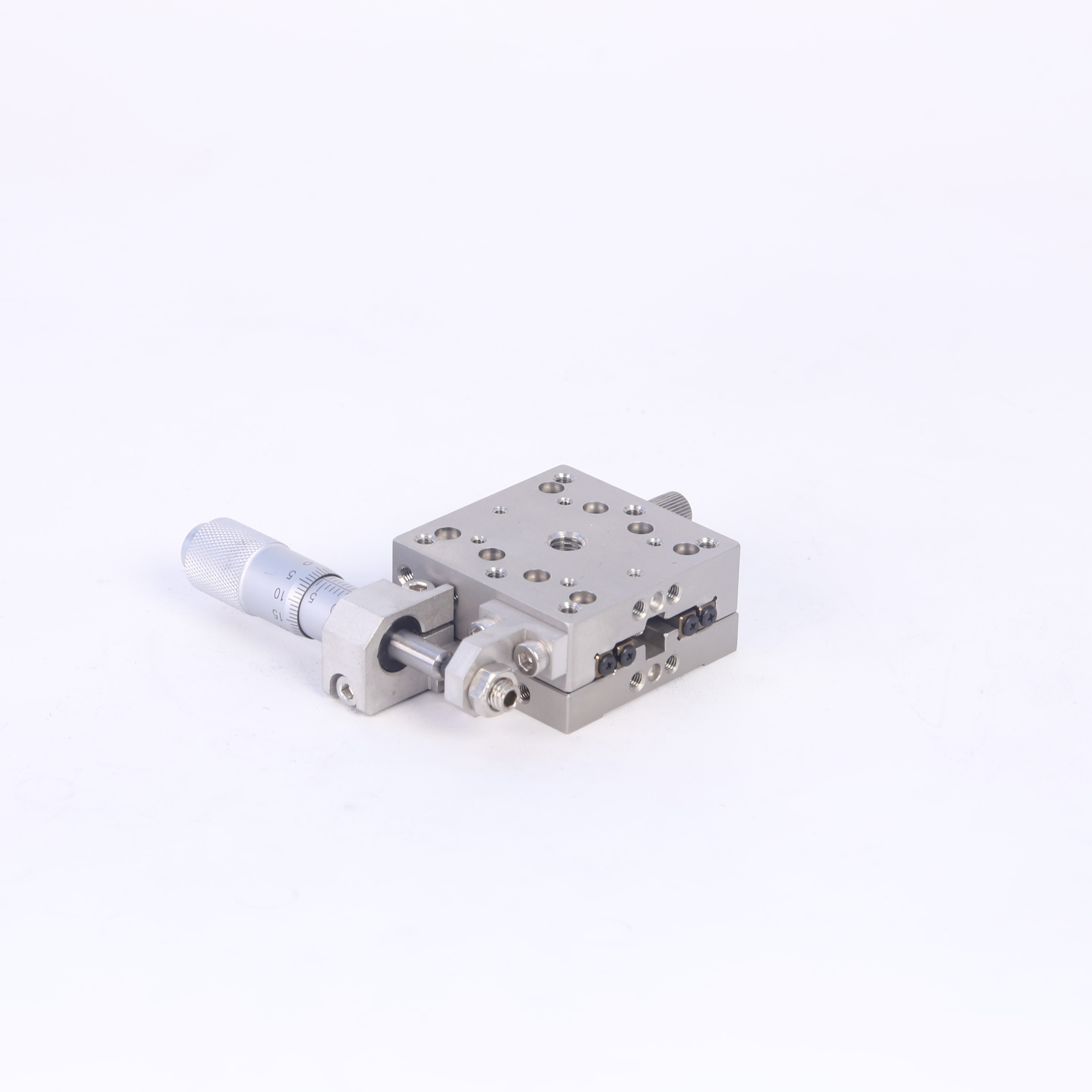

NFP Series Crossed-Roller Bearing High Precision Linear Stages
NFP series products are ultra high precision manual linear stage developed by Zolix. The main material of this series of products is 304 stainless steel. It is guided by ultra-high precision cross roller guide and driven by precision Micrometer. With the unique precision processing technology of Zolix, this series of products has ultra-high sensitivity which less than 1µm, and runs smoothly without runout. The series is particularly suitable for ultra-high precision manual adjustment, especially for the precise adjustment of fiber coupling or optical waveguide devices, DPSS laser components, and can also be used in vacuum environment.
Features:
•Sensitivity ≤ 1µm
•The main material is 304 stainless steel, which has high stability and good corrosion resistance, and is also suitable for using in the real air
•Ultra high precision crossed-roller guide, which ensures the sensitivity, straightness and other key indicators to reach the international level
•All products equipped with Micrometer
•Much higher cost-effective.
Show Filters:

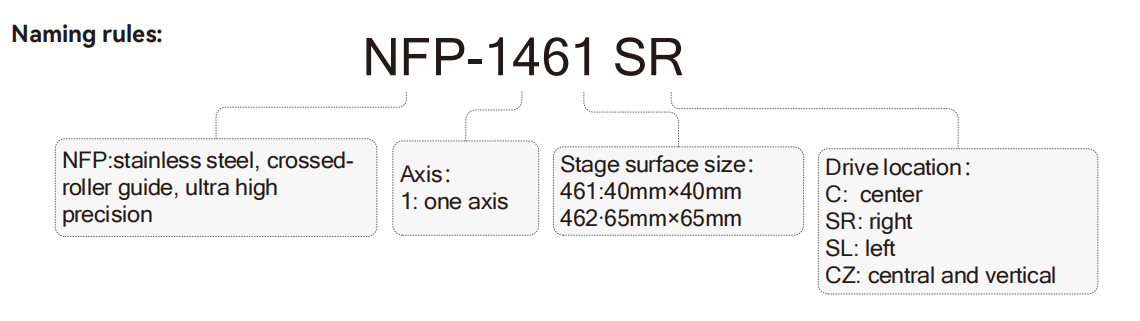

Naming Rules
Selection Table

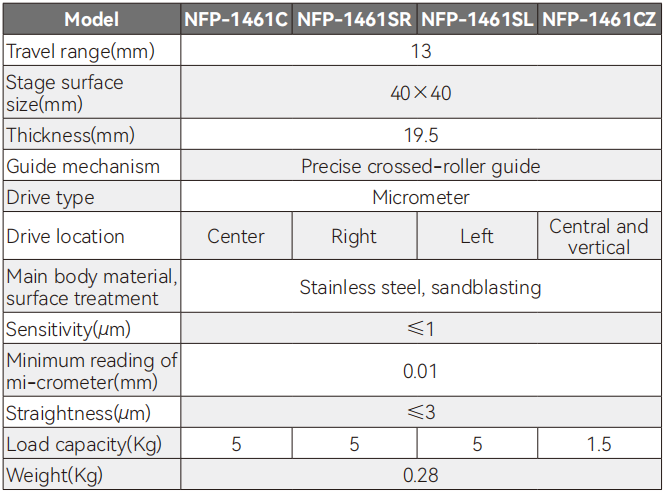

| Model | NFP-1461C | NFP-1461SR | NFP-1461SL | NFP-1461CZ | NFP-1462C | NFP-1462SR | NFP-1462SL | NFP-1462CZ |
| Travel range(mm) | 13 | 13 | 13 | 13 | 25 | 25 | 25 | 25 |
| Stage surface size(mm) |
40×40 | 40×40 | 40×40 | 40×40 | 65×65 | 65×65 | 65×65 | 65×65 |
| Thickness(mm) | 19.5 | 19.5 | 19.5 | 19.5 | 23±0.1 | 23±0.1 | 23±0.1 | 23±0.1 |
| Guide mechanism | Precise crossed-roller guide | Precise crossed-roller guide | Precise crossed-roller guide | Precise crossed-roller guide | Precise crossed-roller guide | Precise crossed-roller guide | Precise crossed-roller guide | Precise crossed-roller guide |
| Drive type | Micrometer | Micrometer | Micrometer | Micrometer | Micrometer | Micrometer | Micrometer | Micrometer |
| Drive location | Center | Right | Left | Central and vertical |
Center | Right | Left | Central and vertical |
| Main body material and surface treatment |
Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting | Stainless steel, sandblasting |
| Sensitivity(µm) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Minimum reading of mi-crometer(mm) |
0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Straightness(um) | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| Load capacity(Kg) | 5 | 5 | 5 | 1.5 | 7 | 7 | 7 | 2.5 |
| Weight(Kg) | 0.28 | 0.28 | 0.28 | 0.28 | 0.85 | 0.85 | 0.85 | 0.85 |
| Axes of Travel | X | X | X | X | X | X | X | X |
