MAD-M22 series Adaptors for OMxA Kinematic Mount
MAD-M22 series Adaptors for OMxA Kinematic Mount

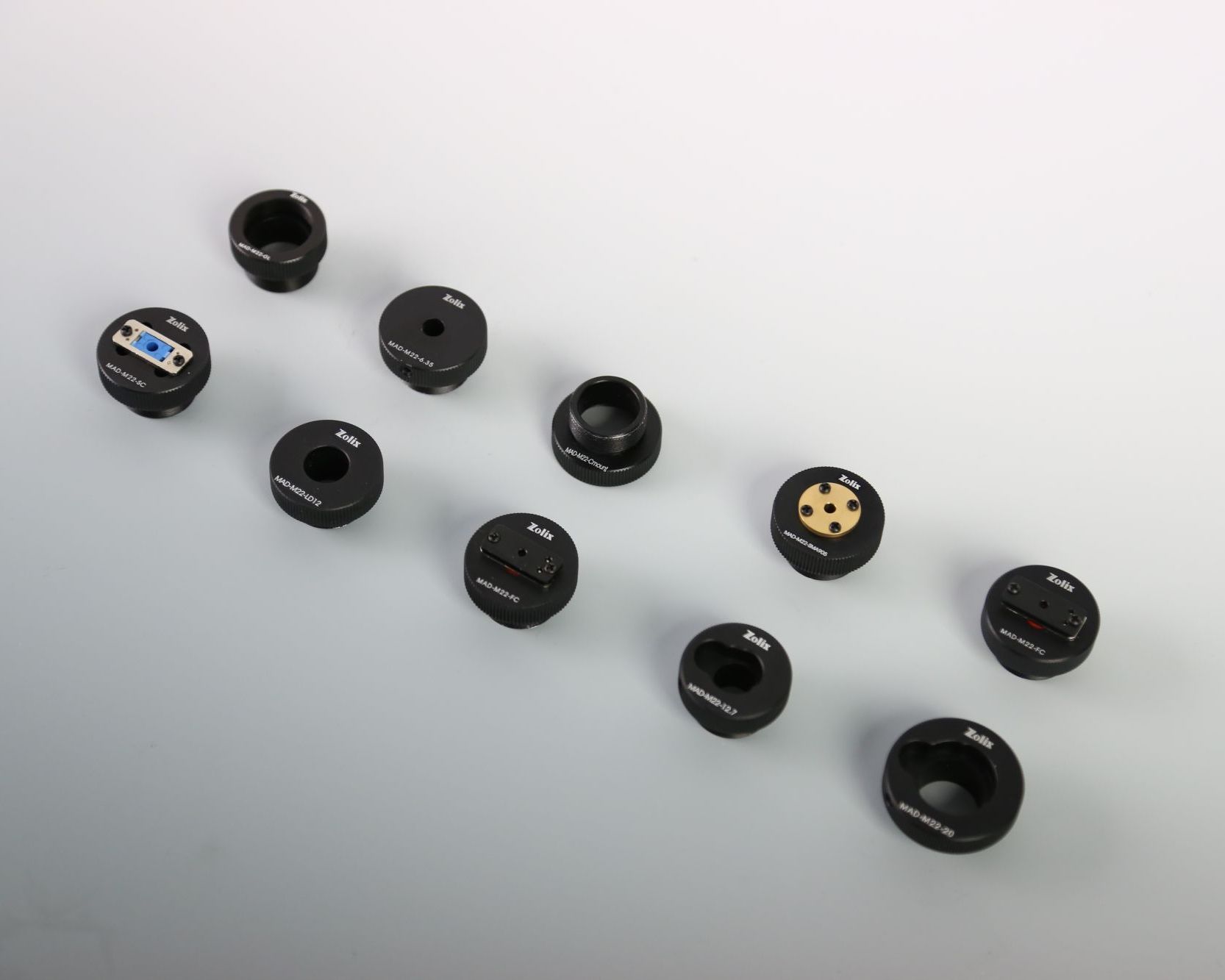

MAD is an adaptor for OMxA kinematic mount, connect different kinds of microscope objectives, laser beam expanders, C-mounts etc.
Features:
See All FeaturesShow Filters:
Features:
• High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
• High applicability: Use standard M22*0.75 thread
Selection Table:
| Model | Mount items | Overall Thickness A(mm) | Front Plate Thinckness B(mm) | Optics Thickness C(mm) |
Overall Diameter D(mm) |
Clear Aperture d(mm) |
Interface Size(mm) |
| MAD-M22-12.7 | Ø12.7mm lens (12.5mm Unicersial) |
16.5 | 8.5 | Ø12.5/Ø12.7 | Ø30 | Ø11 | M22 X 0.75 |
| MAD-M22-20 | Ø20mm lens | Ø20 | Ø36 | Ø17 | |||
| MAD-M22-25.4 | Ø25.4mm lens (Ø25mm unicersial) |
Ø25/Ø25.4 | Ø42 | Ø17 | |||
| MAD-M22-OL | microscope objective | 4/5"-1/36 | Ø31 | Ø17 | |||
| MAD-M22-Cmount | C-mount lens | 1"-1/32 | Ø31 | Ø17 | |||
| MAD-M22-6.35 | fiber (bare fiber, adapt for APFCH) | Ø6.35 | Ø31 | / | |||
| MAD-M22-FC | Fiber (FC connector) | FC connector | Ø31 | / | |||
| MAD-M22-SC | Fiber (SC connector) | SC connector | Ø31 | / | |||
| MAD-M22-ST | Fiber (ST connector) | ST connector | Ø31 | / | |||
| MAD-M22-SMA905 | Fiber (SM905 connector) | SMA905connector | Ø31 | / | |||
| MAD-M22-LD12 | LED | Ø12 | Ø31 | / |
